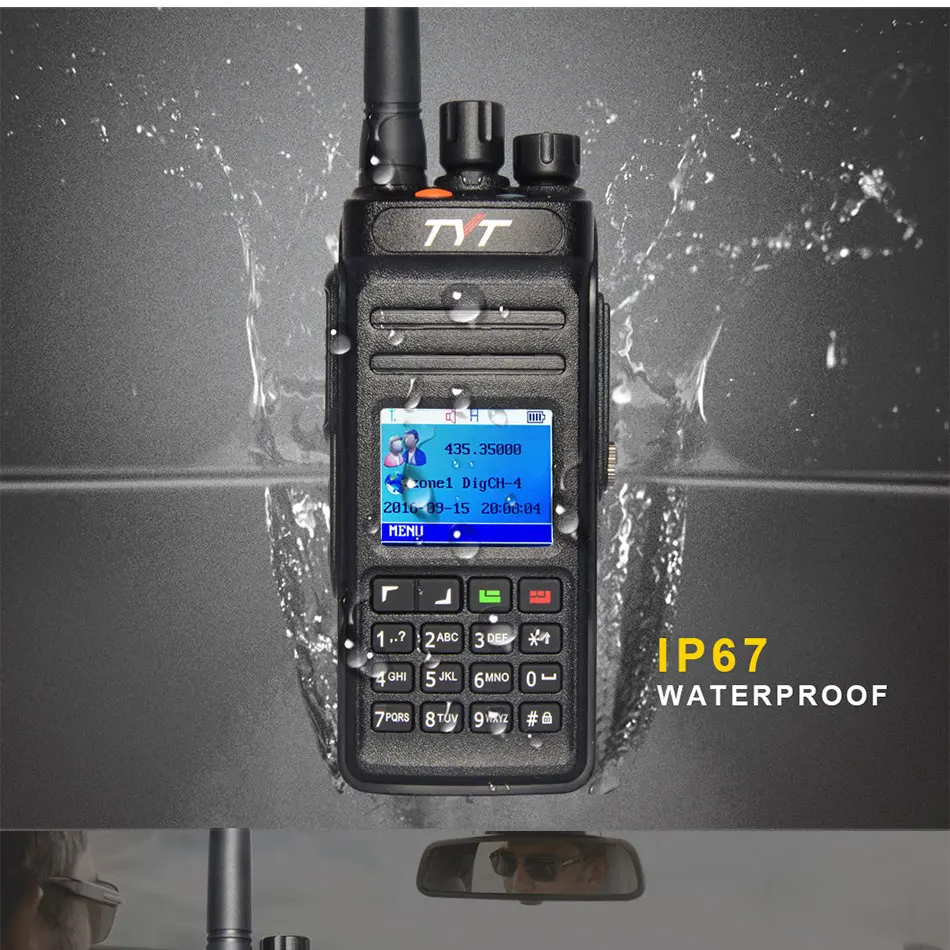

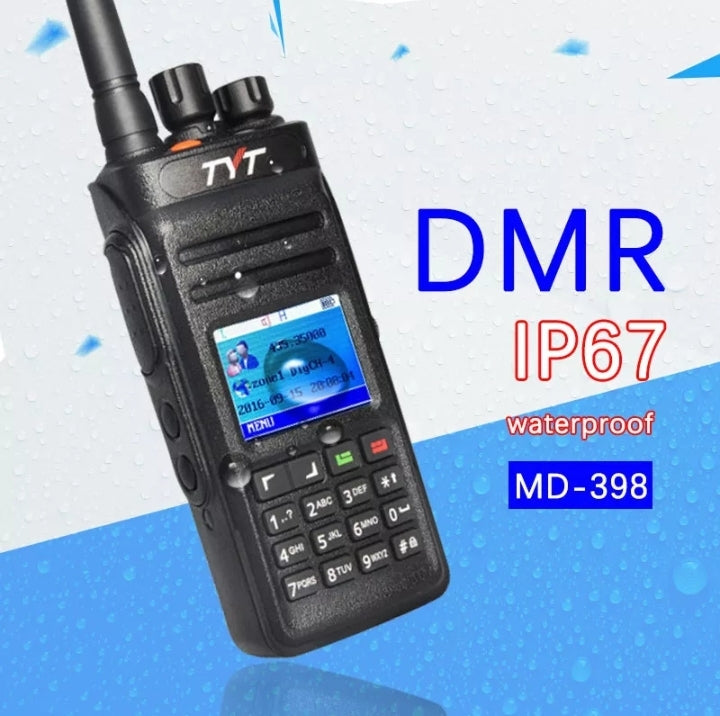

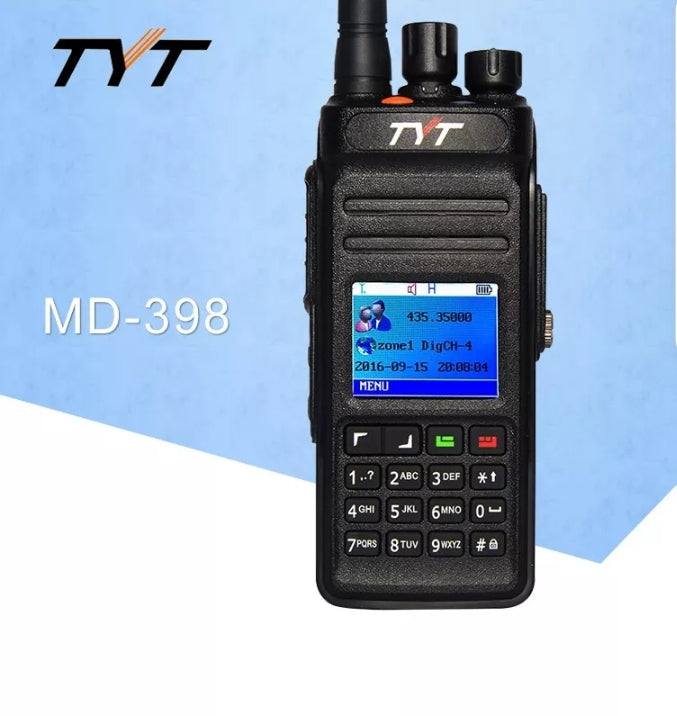

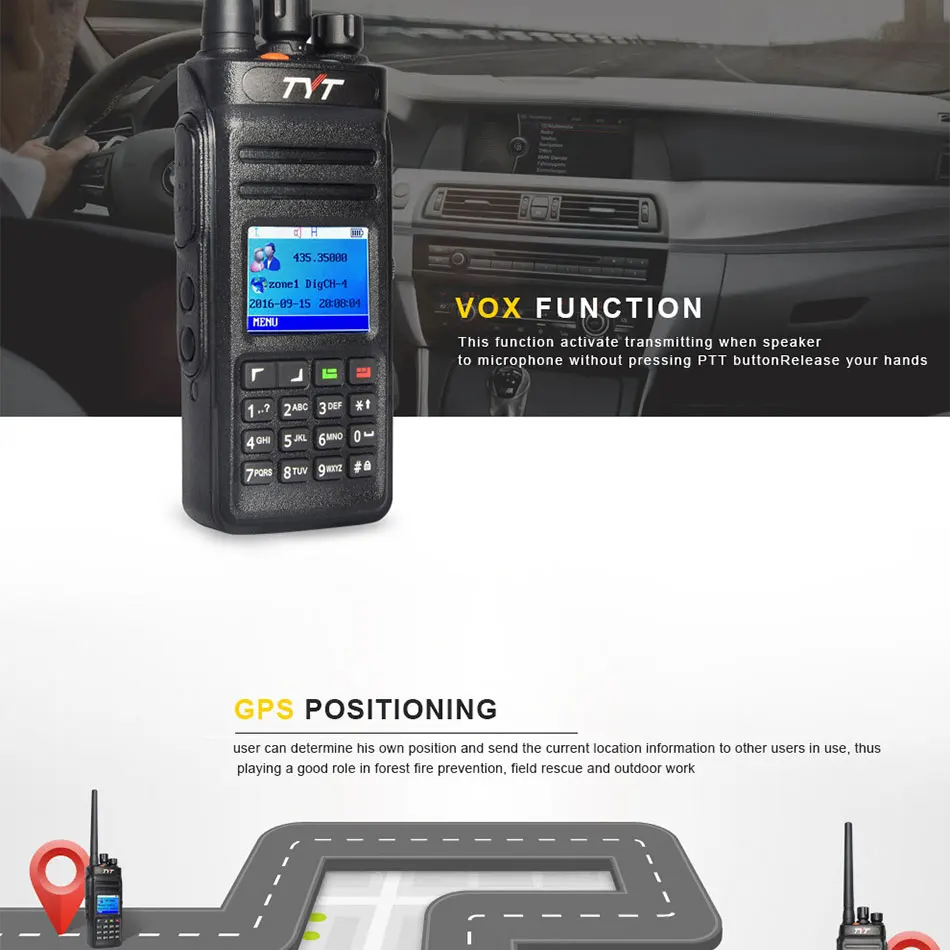

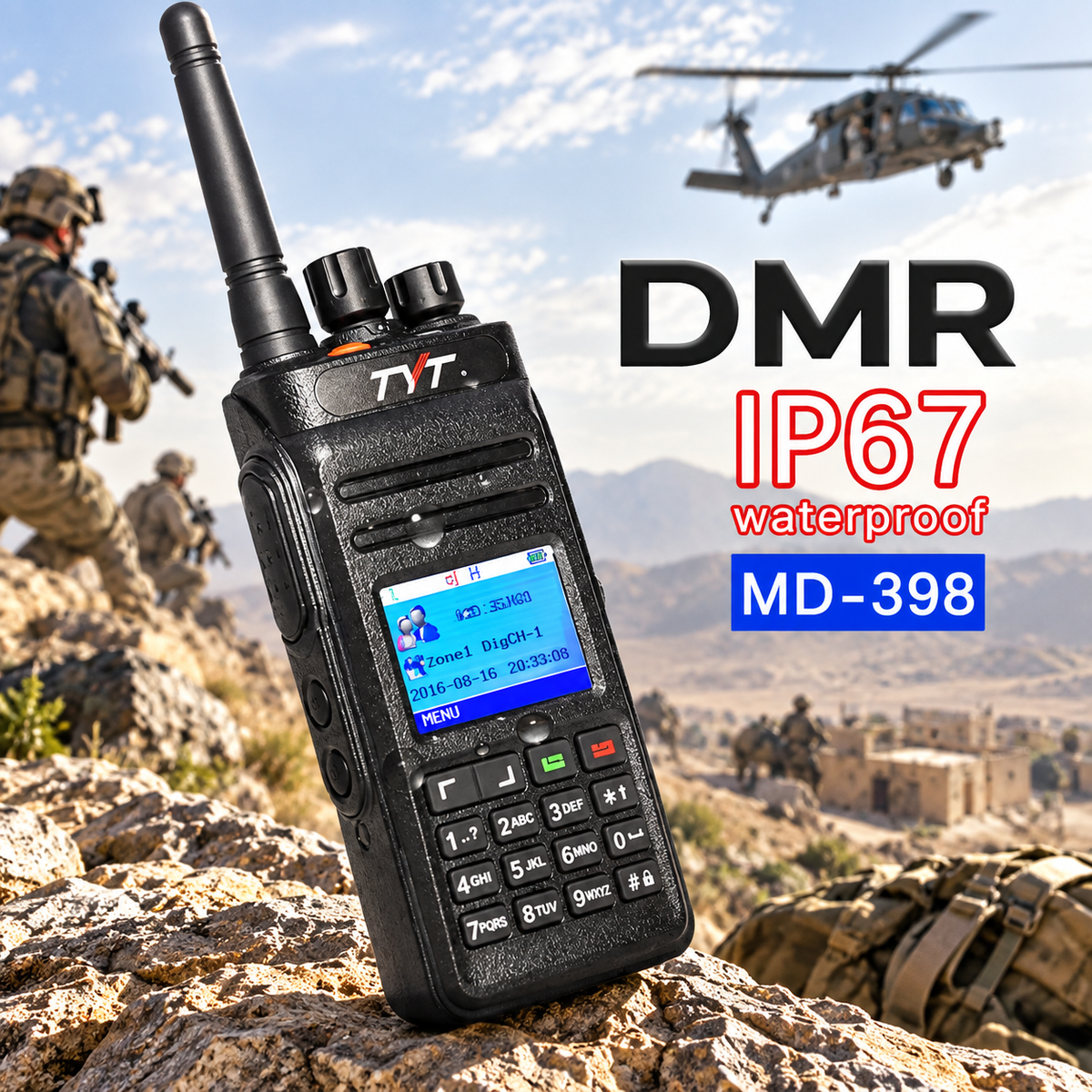

TYT M398 Digital DMR GPS Two way duel band Transceiver UHF/VHF IP67 10W long range
Regular price
£249.95 GBP
Regular price
Sale price
£249.95 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| MD-398 | |
| General | |
| Frequency range | 400-470 MHz |
| Channel | 1000 |
| Operating voltage | 7.2 v |
| Operating Temperature | -30℃ ~ + 60℃ |
| Storage Temperature | -40℃ ~ + 85℃ |
| Continuous Working Time | Analog: 15 hours Digital: 25 hours |
| Battery Capacity | 2800 Mah |
| Transmitter | |
| Frequency range | 400-470 MHz |
| Channel spacing | 12.5 KHZ |
| Frequency stability | +/-1.5ppm |

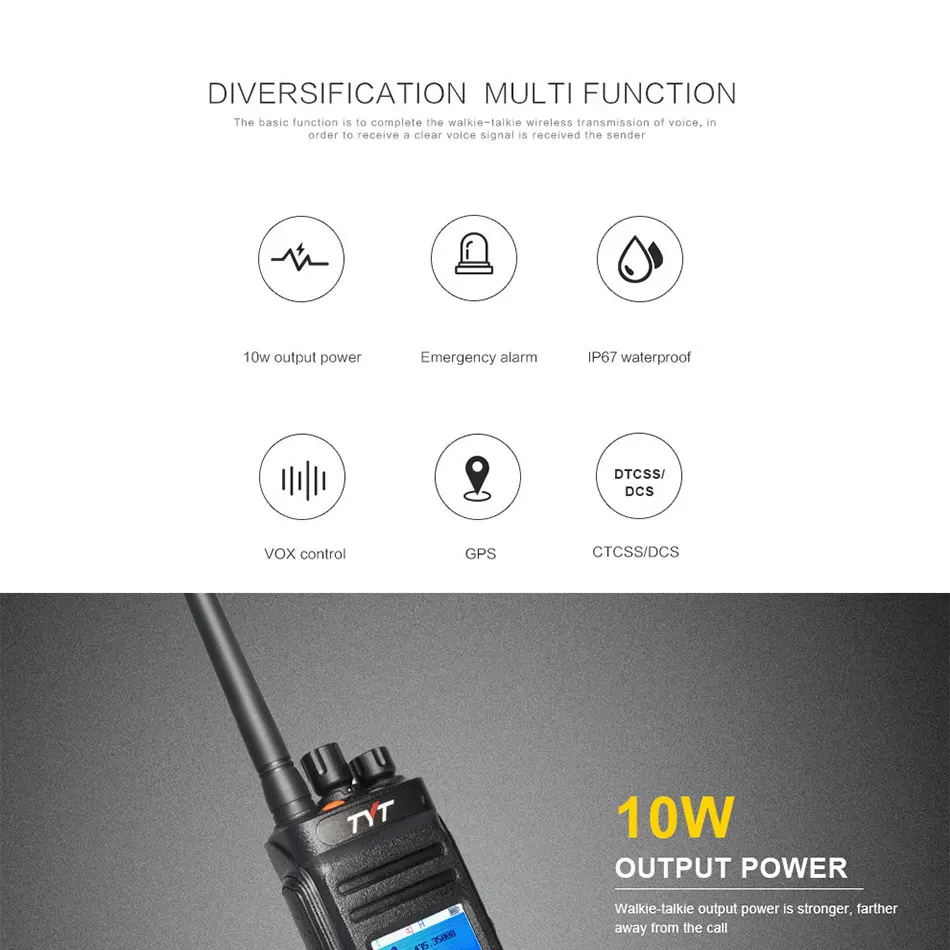

| TX power | Low: 1W Alta: 10W |
| FM noise | -40dB @ 12.5 KHZ |
| Spurious emissions | <-36dB m @ 1 GHZ, > 30dB m @ 1G |
| Selectivity adjacent channel | -60dB @ 12.5 KHZ |
| FM modulation mode | 12.5 KHZ: 11 F 0 F 3 E |
| 4FSK digital modulation mode | 12.5 KHZ (data only): 7K60FX 12.5 KHZ (data + voice): 7K60FX |
| Modulation limit | 2.5 KHZ @ 12.5 KHZ |
| Audio response | + db ~-3dB |
| Nominal audio distortion | ≤ % |
| Digital protocol | ETSITS102361-1,-2,-3 |
| Type Vocoder | AMBE + 2TM |
| Receiver | |
| Frequency range | 400-470 MHz |
| Spacking channel | 12.5 KHZ |
| Frequency stability | +/-1.0ppm |
| Analogic sensitivity | 0.35uV / -116dBm (20dB SINAD) 0.22 uV / -120dBm (Typical) |
| Digital sensitivity | 0.3 uV/-117.4dBm (BER 5%) 0.7 uV/-110dBm (BER 1%) |
| Spurious answer | TIA603C: 65dB ETSI: 65dB |
| Selectivity adjacent channel | TIA603C: 60dB @ 12.5 KHZ ETSI: 60dB @ 12.5 KHZ |
| Spurious suppressant response | TIA603C: 70dB ETSI: 70dB |
| Reception of spurious emissions | <-57dBm @ 1 GHZ, >-47dBm @ |
| Block | 84dB |
| Rated audio power | 1 W |
| Audio response | + db ~-3dB |
| Nominal audio distortion | ≤ % |

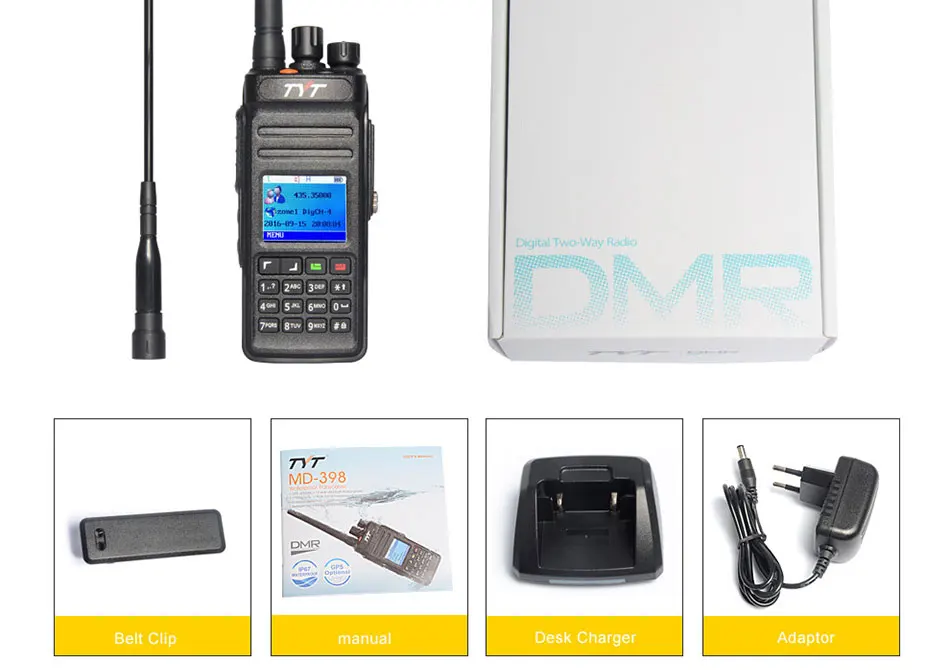

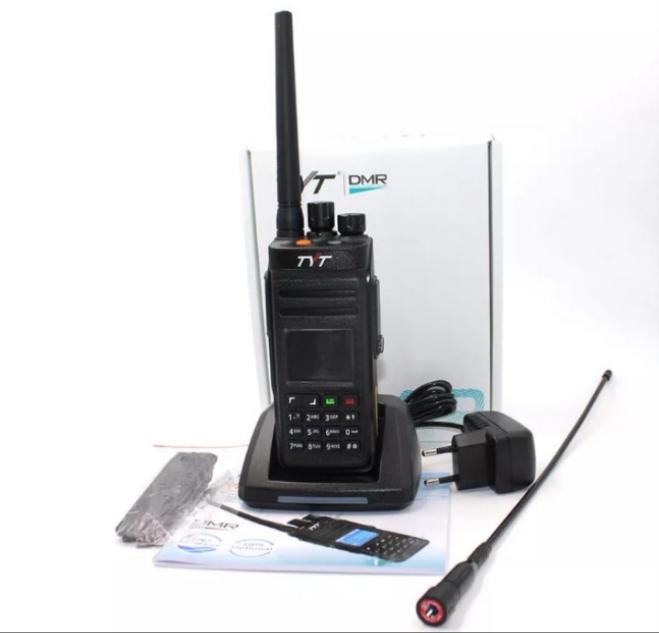

| Package contents: | |
| 1 x TYT MD-398 Radio Digitale (UHF 400-470 Mhz) | |

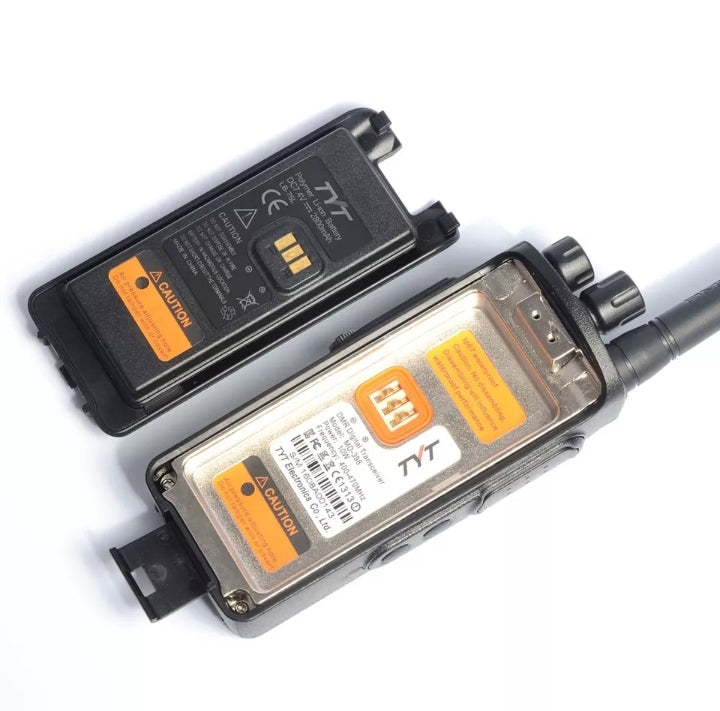

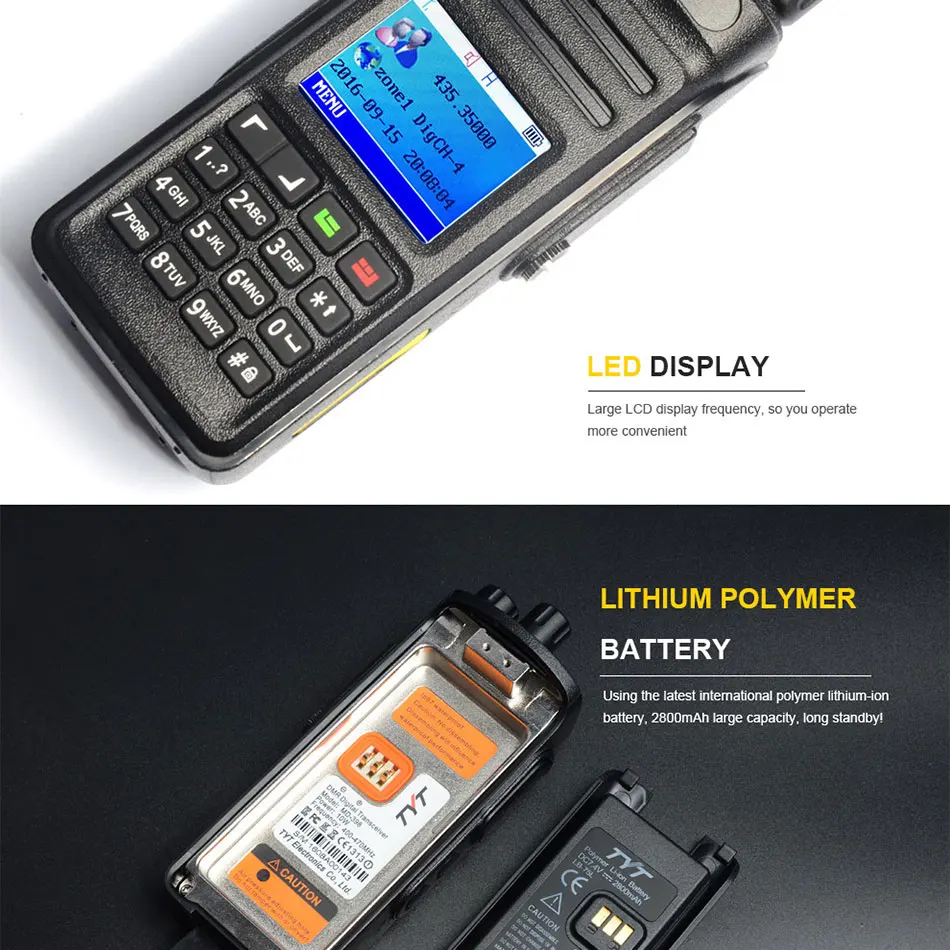

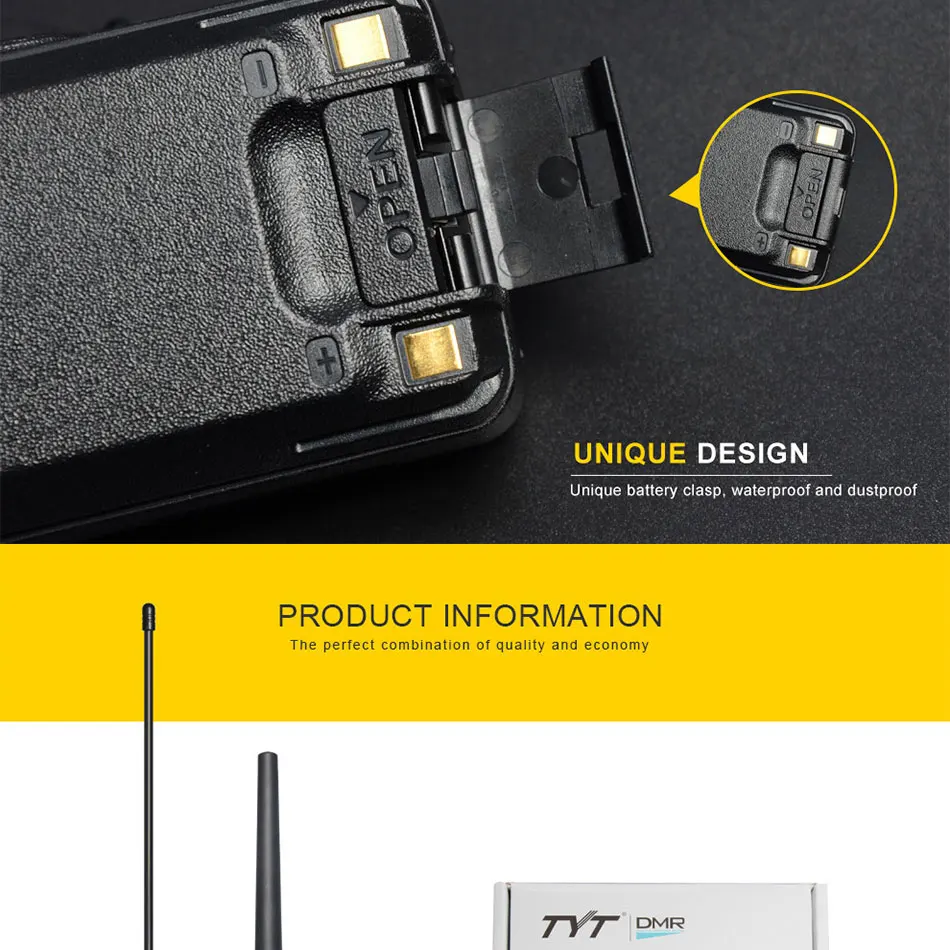

| 1 x 7.4 V 2800 mah Li-Ion Battery Pack LB-75L | |

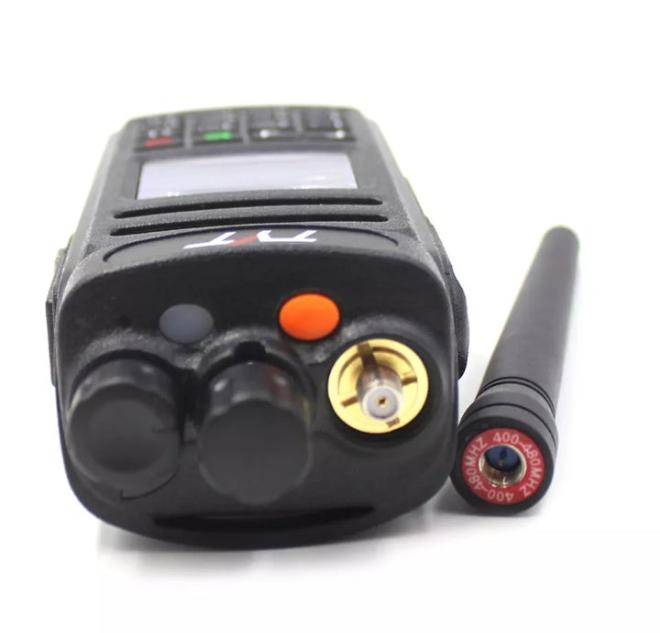

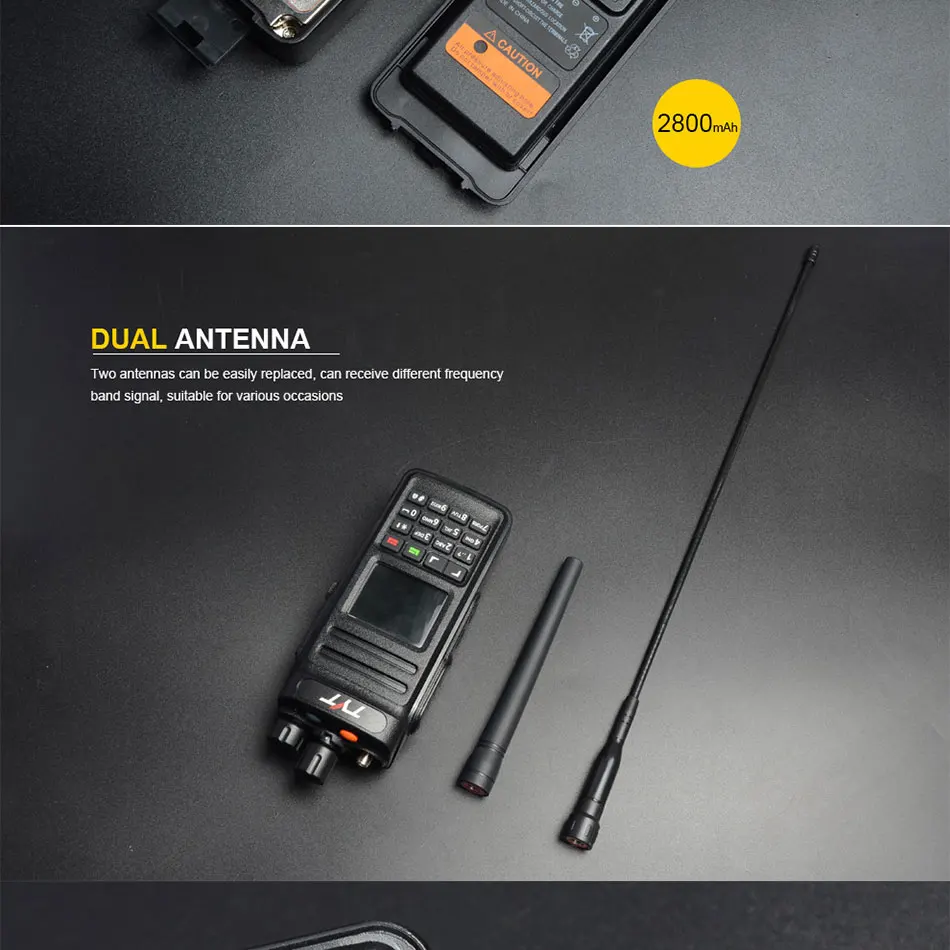

| 2 x Antenna SMA-Male | |

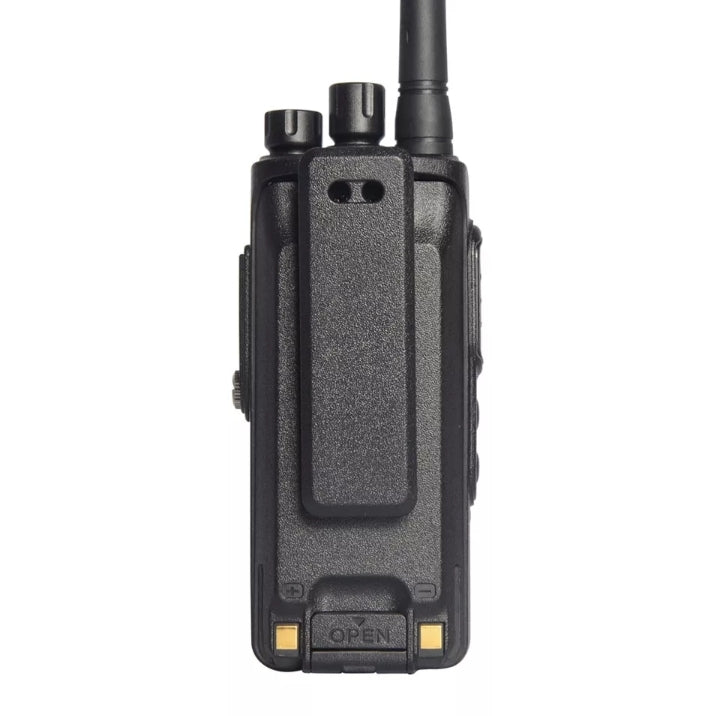

| 1 x Belt Clip | |
| 1 x Manual ENG | |
| 1 x Desktop Charger (110V ~ 250V) with Correct Adapter for your country | |
