IWMD-Store SECUTOR ARMOUR

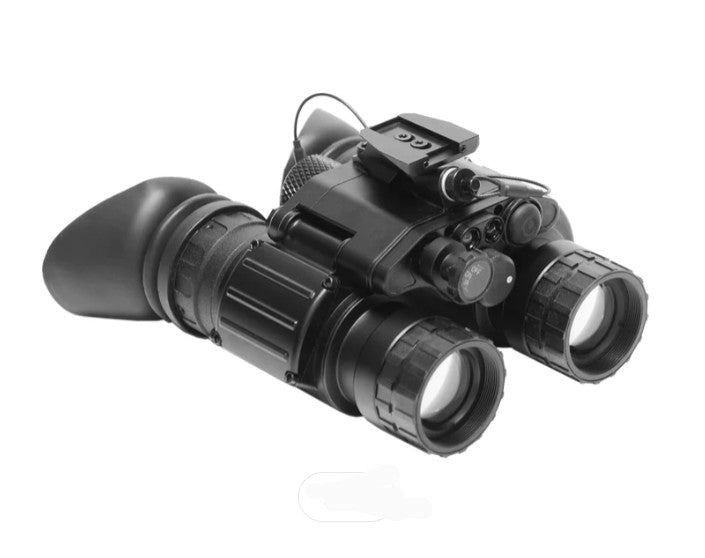

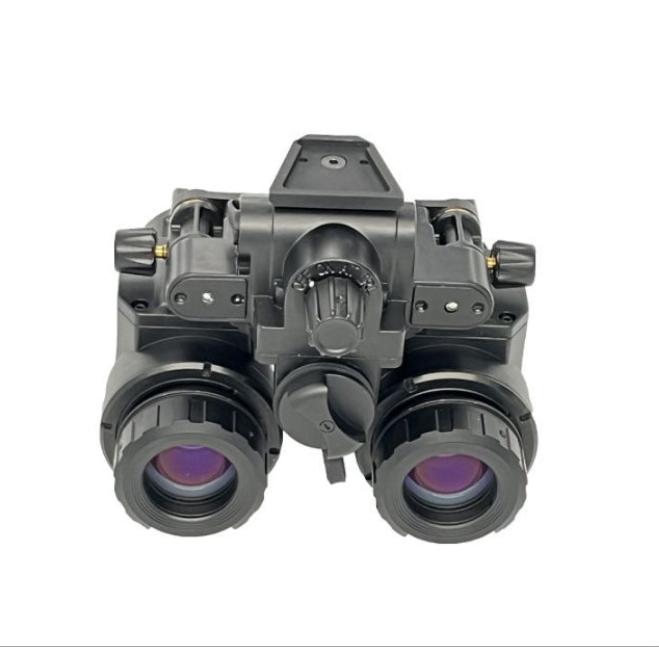

PVS3140 Gen 3 Gen 2+ White/Green Phosphorus Tubes Night vision goggles LDNV008N FOV 50 degree housing with battery packs and diopter adjustment

Regular price $8,566.00 USD
Regular price Sale price $8,566.00 USD
Sale Sold out
Shipping calculated at checkout.
Style

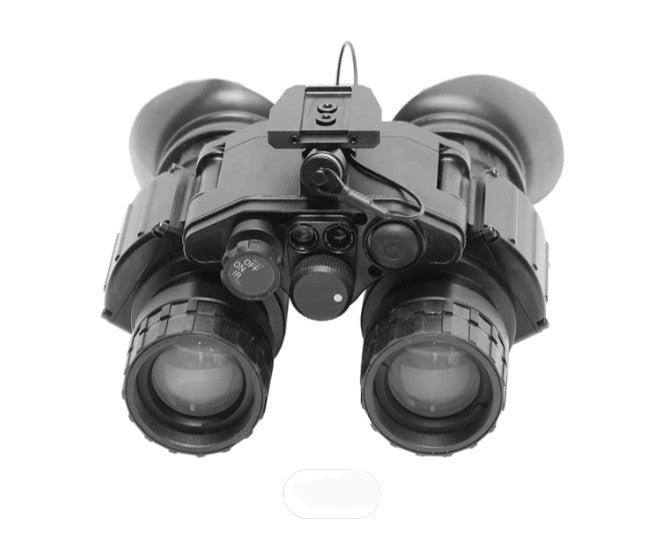

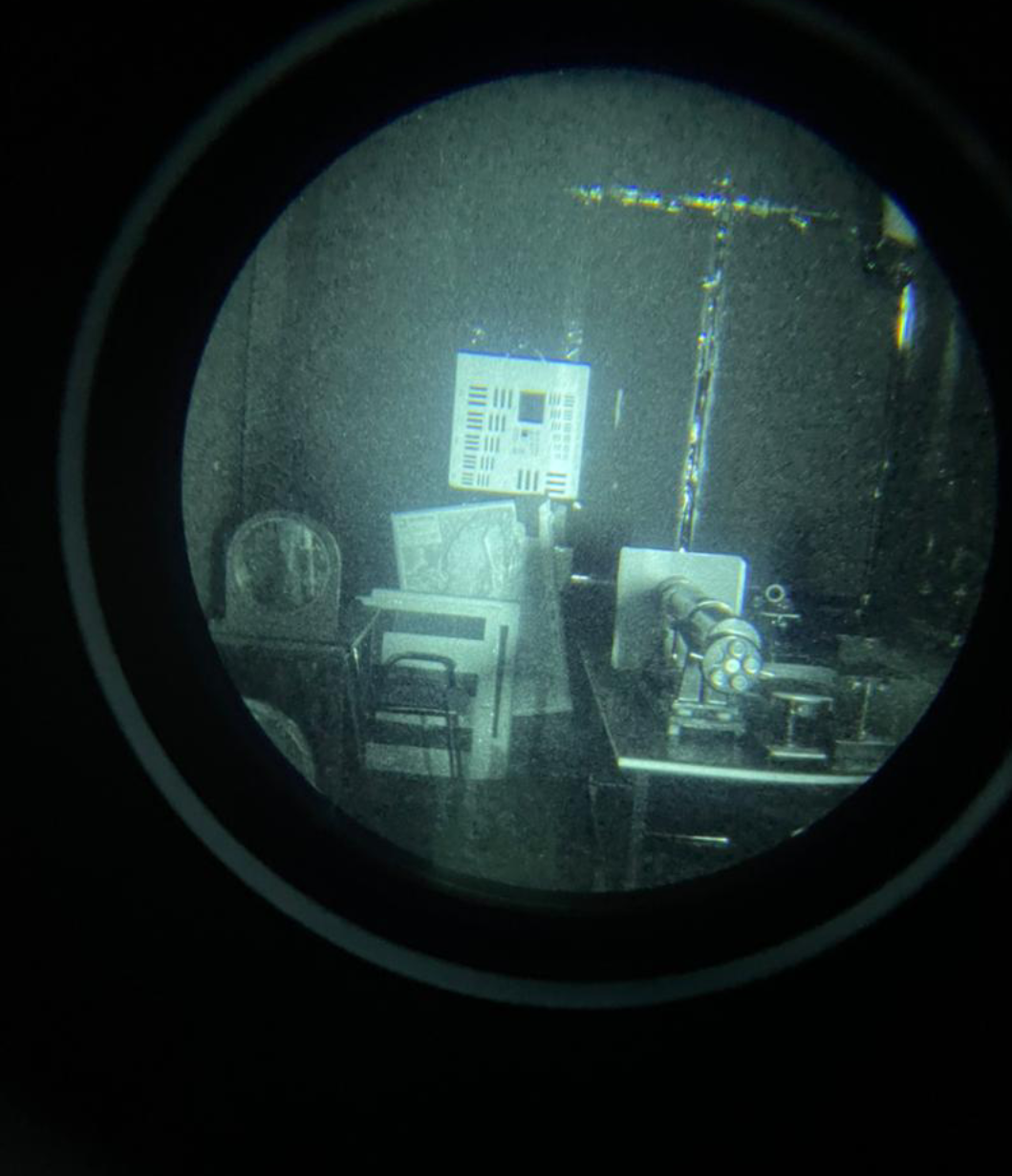

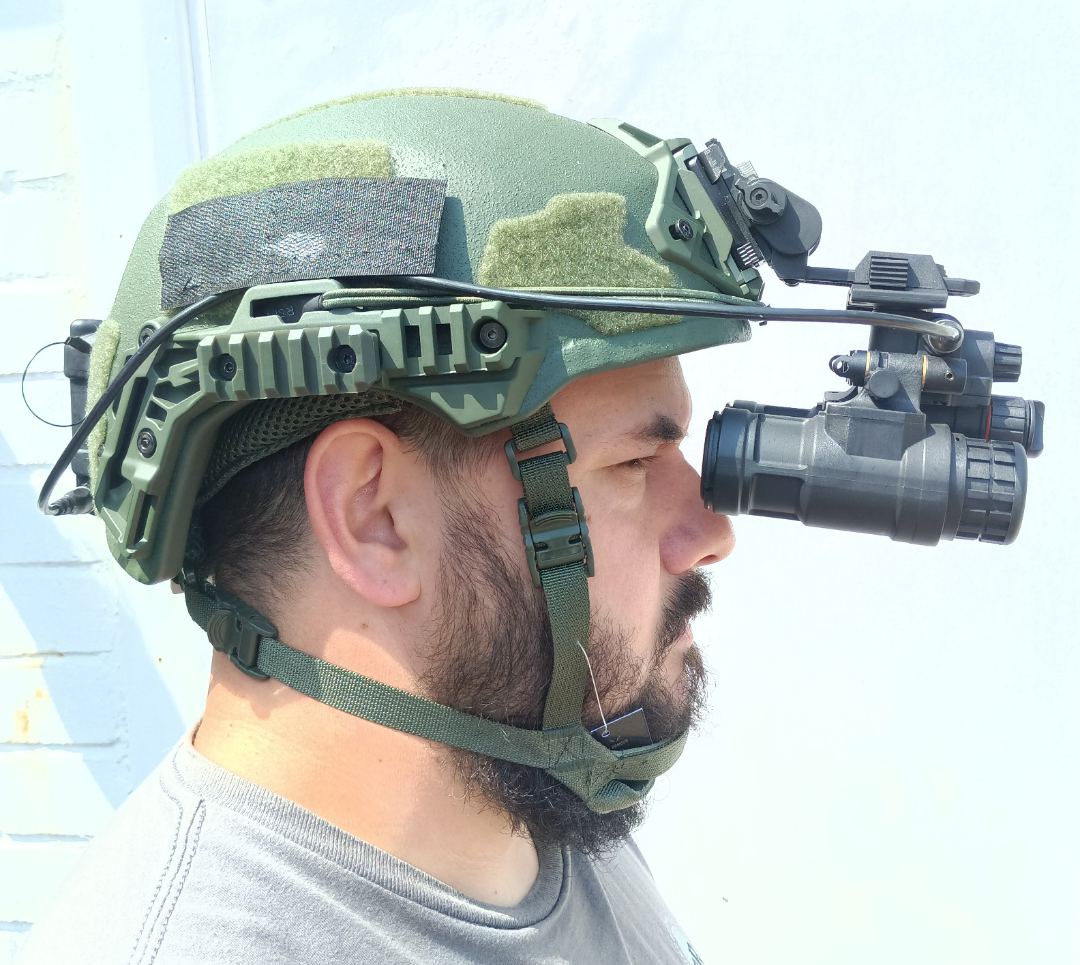

This 1X binoculars night vision goggles gen 3 gen2+, its FOV 50 degree better than PVS 3140m. Our new design is compact, lightweight dual night vision binoculars. They utilize two high performance image intensifier phosphorus tubes to provide extremely clear and crisp images under the darkest conditions.  A built-in IR illuminator lets the users easily read a map and function in a total darkness environment.

NOTICE: LEAD TIME IS 3 - 4 WEEKS AS WE DO NOT KEEP UNITS IN STOCK DUE TO LOW SALE NUMBERS BUT COMPARED TO USA 6 MONTHS WAITING LIST WE ARE FASTER.

This 1X binoculars night vision goggles gen 3 gen2+ is designed to handle every budget and mission requirement and is a high performance choice!

Products Description

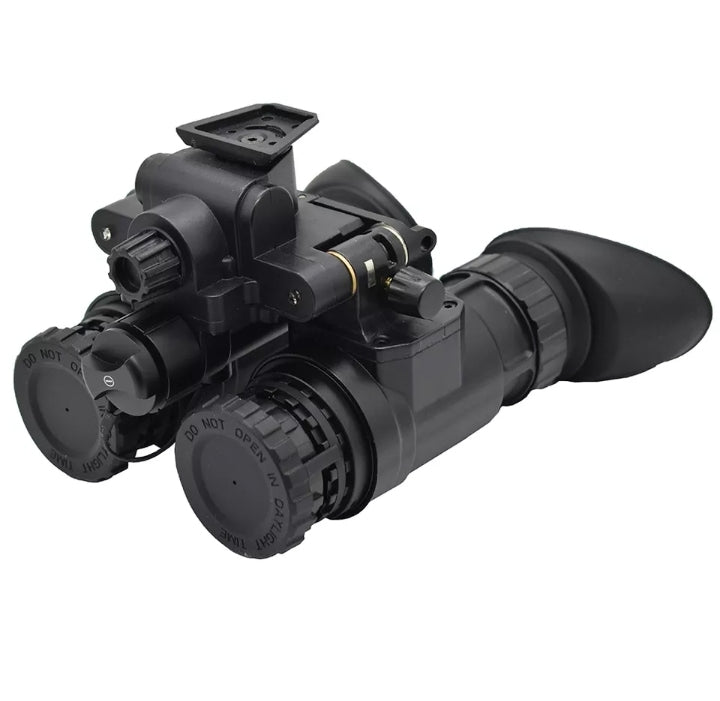

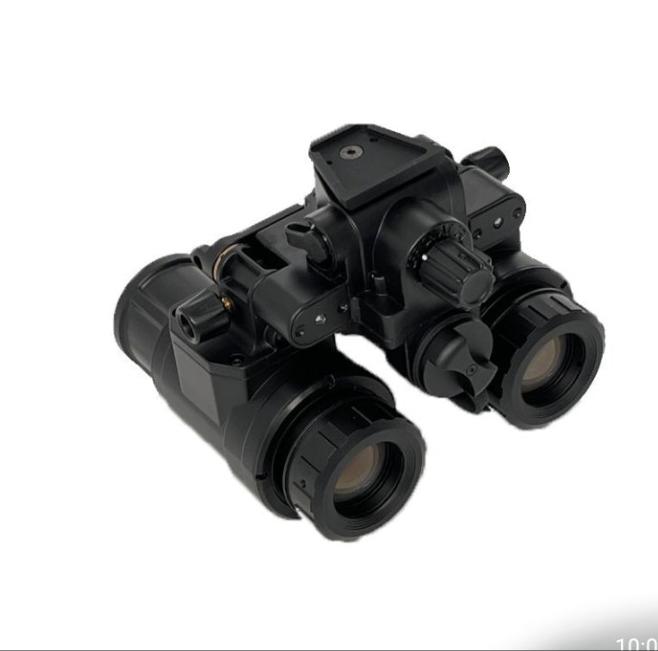

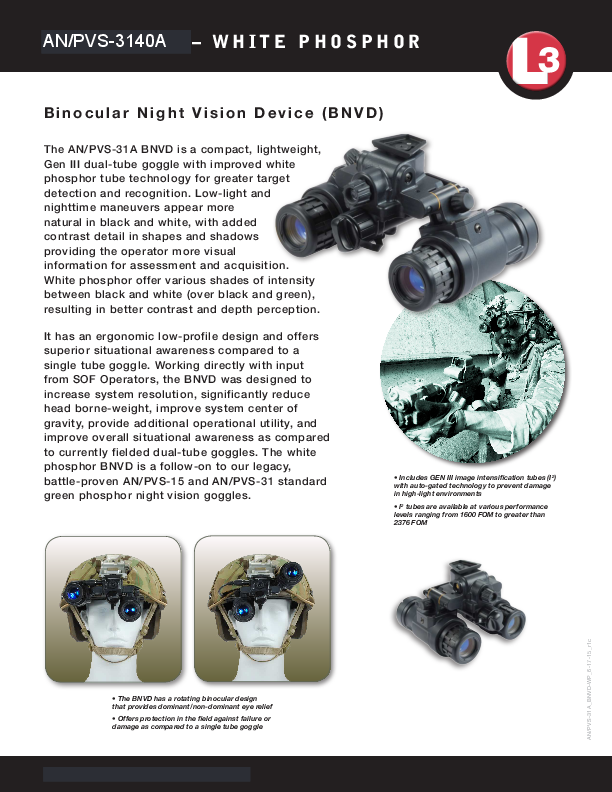

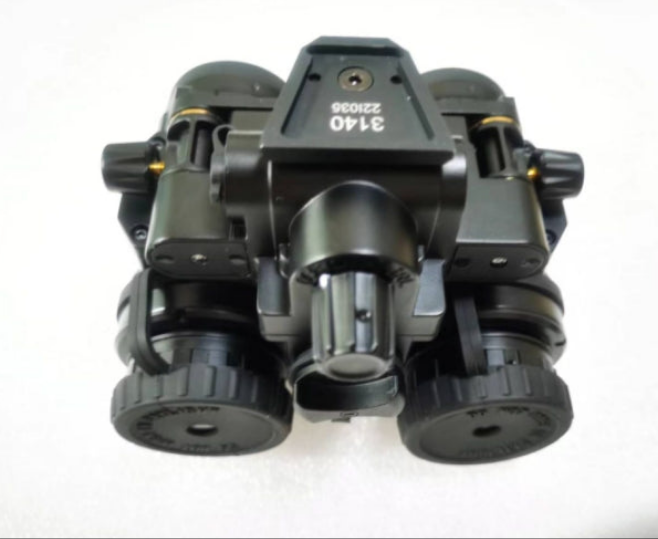

PVS-3140NVG is a high-performance military head mounted night vision binocular with reference to pvs-31, an active head mounted night vision binocular in the United States. Low light PVS-3140NVG has the characteristics of super large field of view, high definition, no distortion, light weight, high strength, which is the ideal choice for military night vision device.
FOM is 1768-1800,64-68lp 26SNR Gen2+ WP tubes.

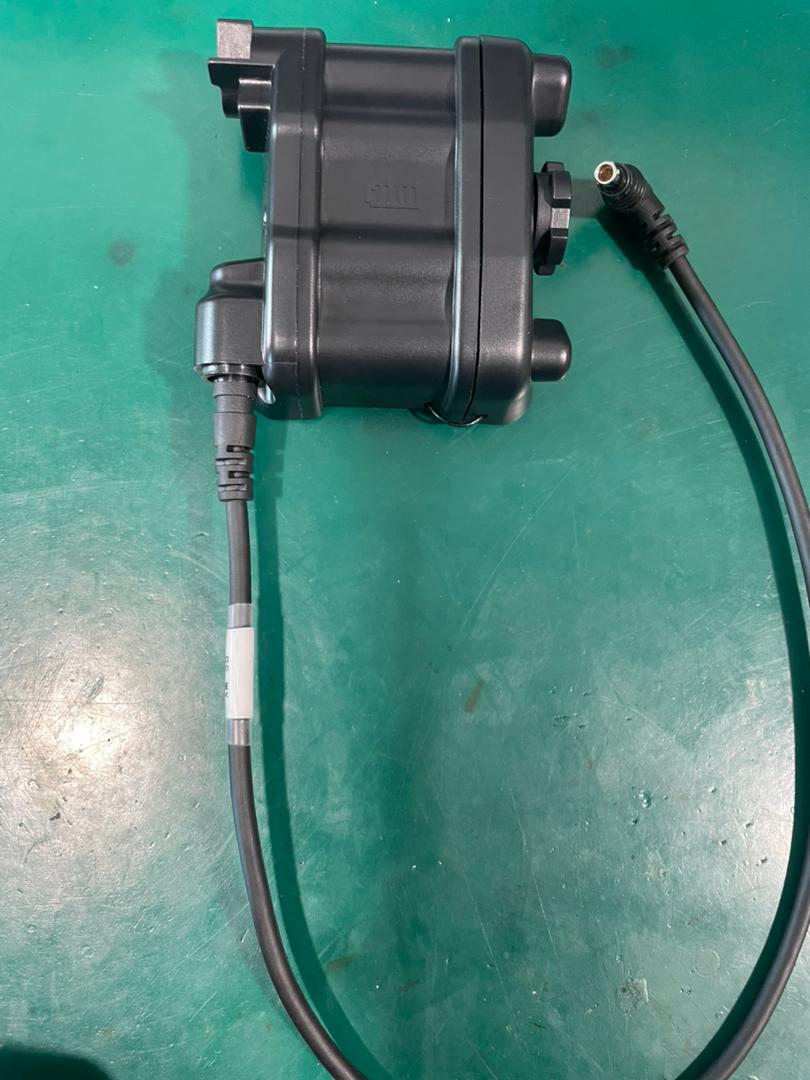

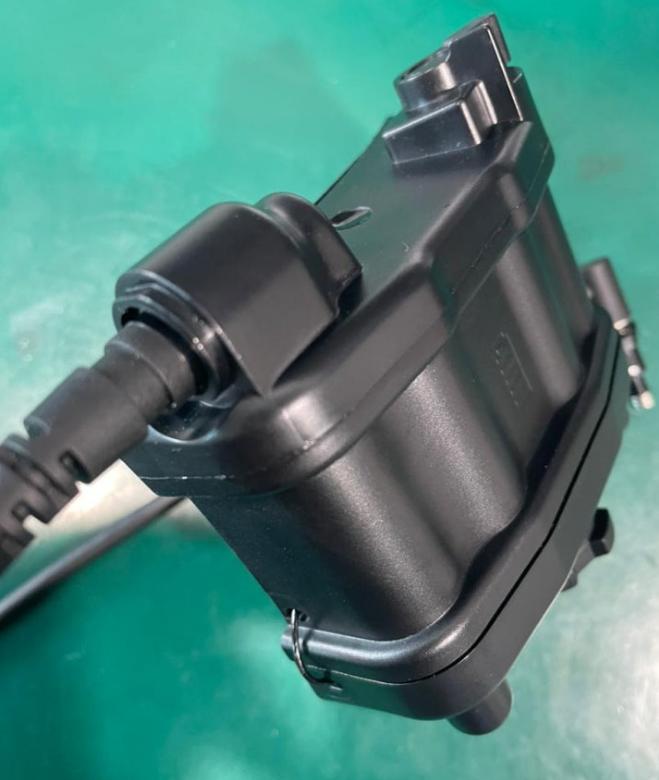

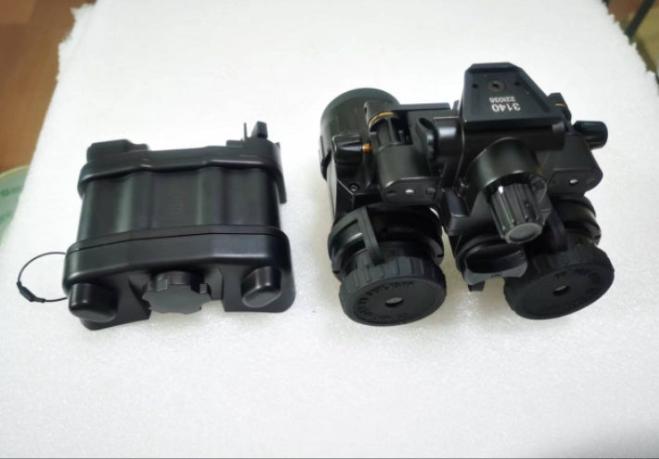

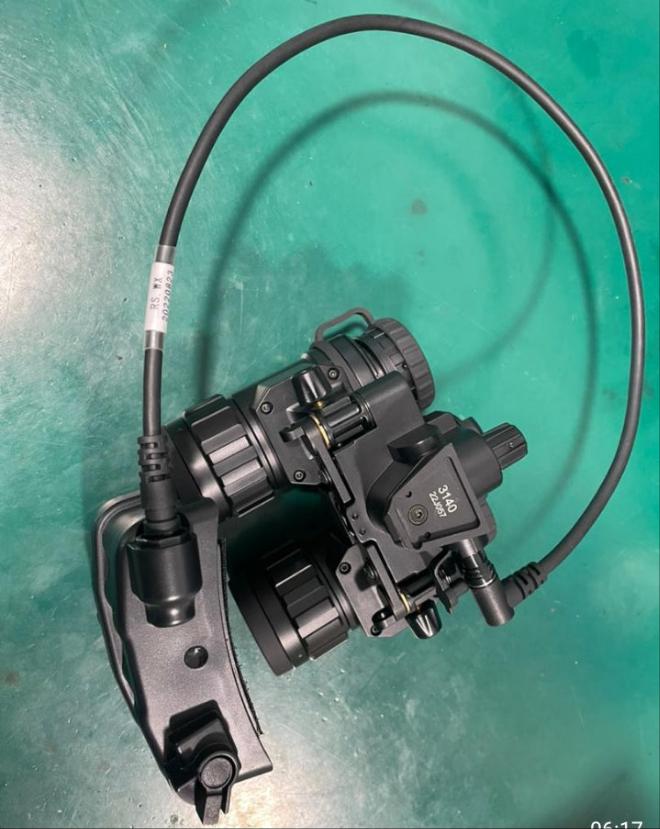

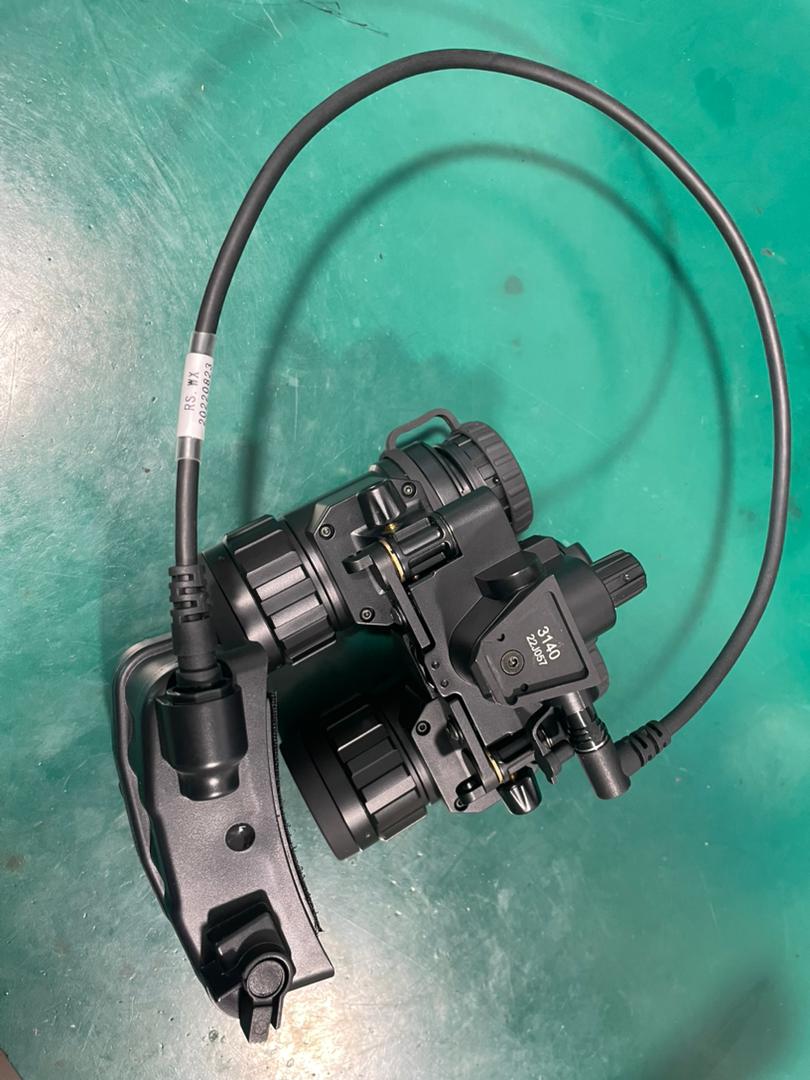

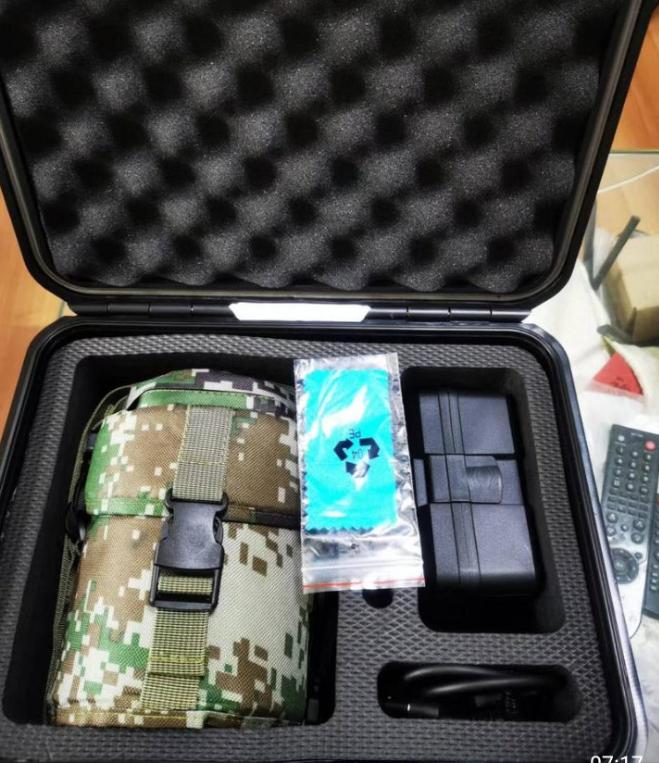

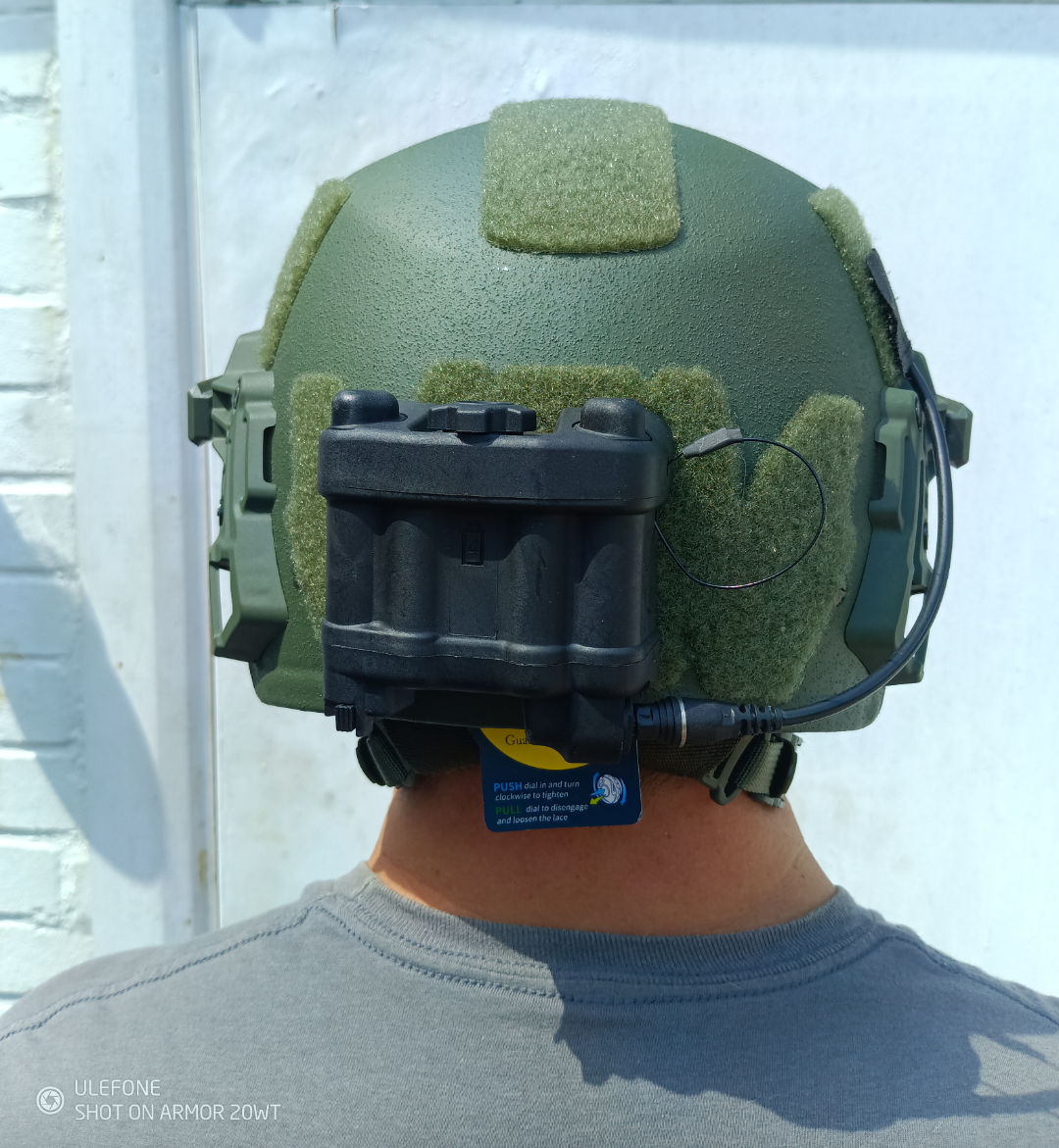

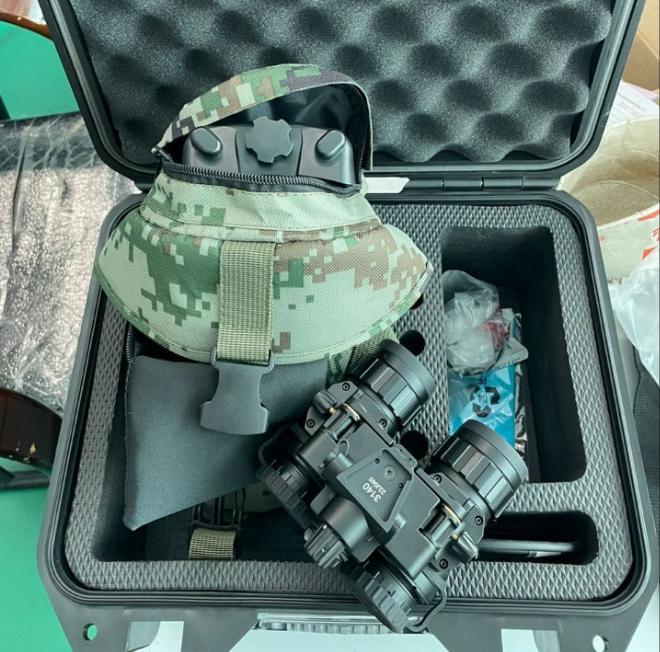

1set NVGs with 2pcs WP tubes,battery pack,power cable,safety case
Technical specifications:
MODEL
PVS-3140NVG
Structural design

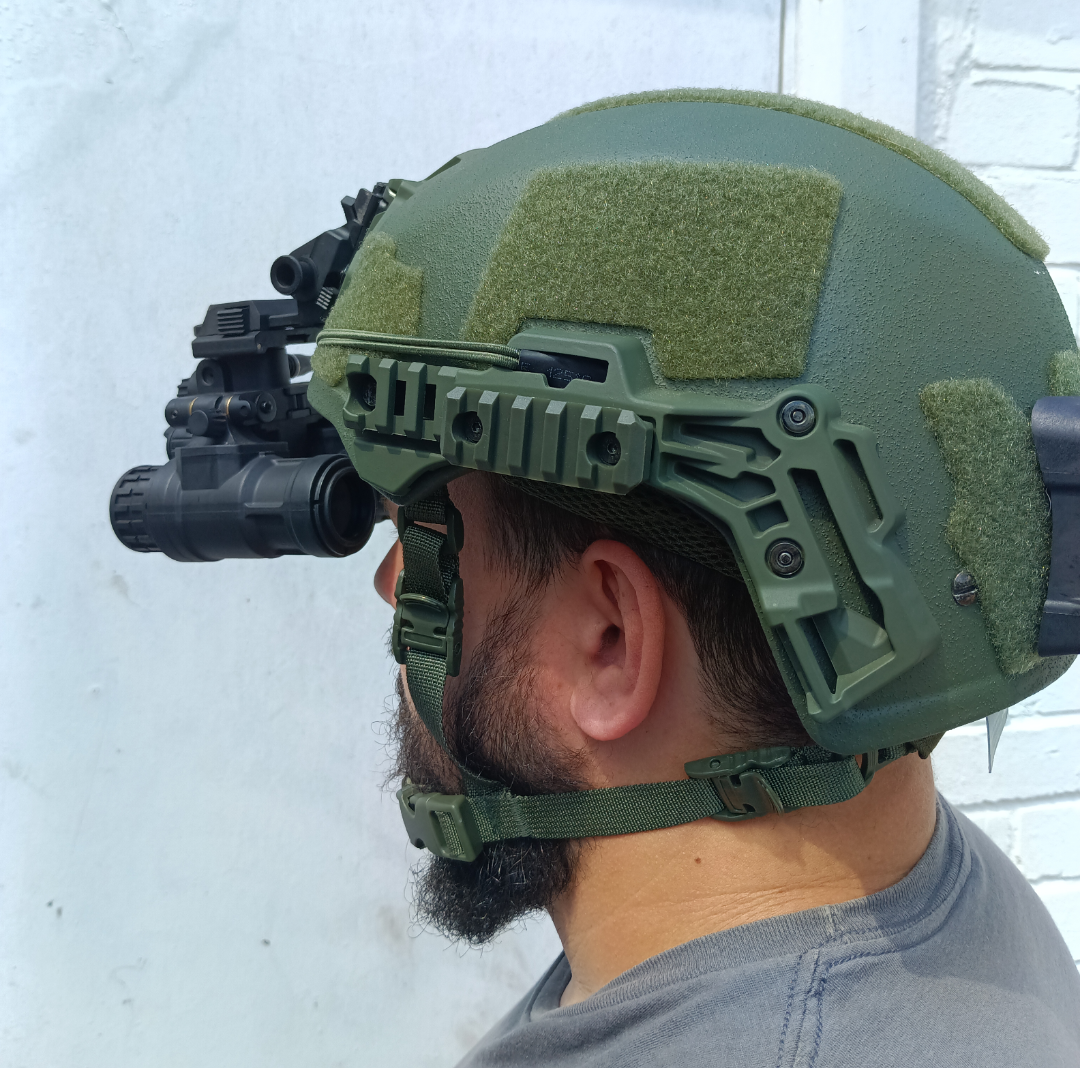

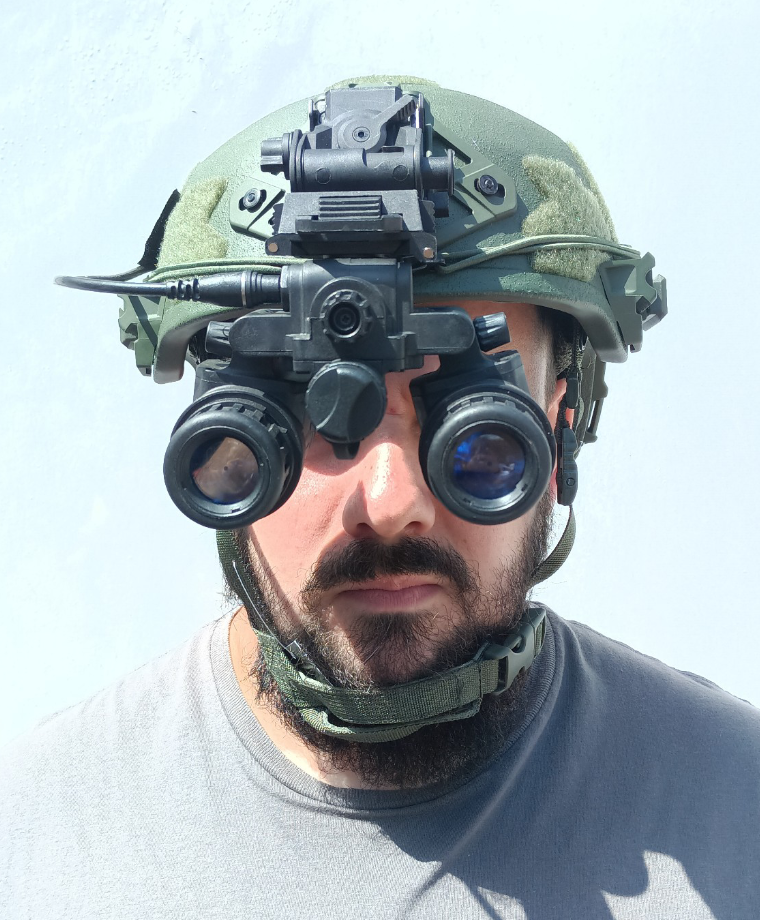

Flip up helmet mounted
Automatically detect and power off when flip up
Battery type
Lithium battery (cr123x1) / cr123x4 external battery box
Power supply
2.6-4.2V
Control mode
ON/IR/AUTO
Over power consumption
<0.1W / 0.1w
Battery capacity
800-3200maH
800-3200maH
Battery life
40-100hrs
Magnification
1X
FOV
40°
IIT
Gen2+ / 3
Lens system
F1.18 22.5mm
Resolution
64LP/mm
Optical distortion
3% Max
Relative Illumination
>75%
Coating
Multi-layer broadband coating
Focal Range
250mm-∞
Focus mode
manual focus
Eye relief
30mm
Eyepiece aperture
8mm
Eye distance adjustment range
50-80mm
Eye distance locking method
Manual locking


FEATURES:

1. IP65 orIP67 weatherproof;
2. Low battery indication;
3. Bright source protection;
4. Mil-spec multi-coated optic;
5. Automatic brightness control;
6. Fully adjustable head mount;
7. Embedded spring in battery’s cap;
8. Automatic shut off when flipped up;
9. No power consumption when in standby;
10. Large IPD range.

The new PVS-3140-MOD is a dual-tube goggle system with ergonomic design and improved functionality. It accommodates features such as a dedicated Instant-On-IR button to quickly and momentarily engage IR illuminator without having to operate the switch.

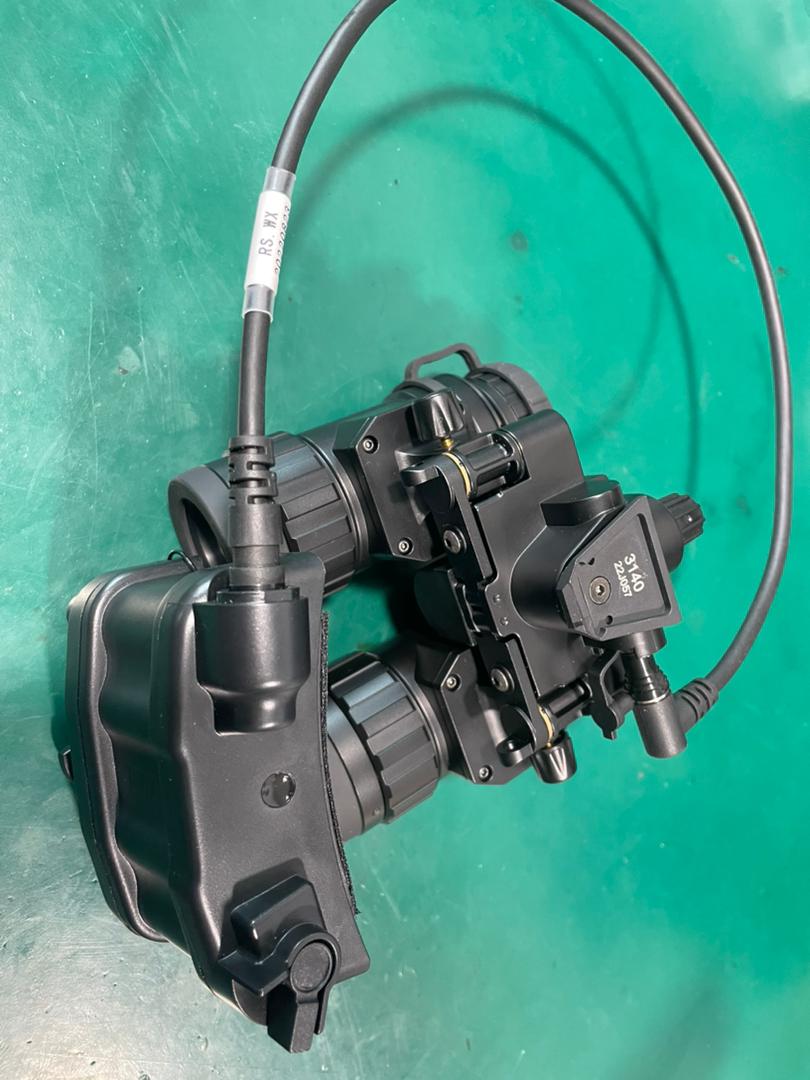

The connector located at the front of the unit is used to supply power to the unit from almost any power source: external battery pack, USB power bank, 12V car socket and so on. By customer's request, the unit can be equipped with Bayonet (PVS) or Dove-Tail style bracket.

Thanks to dual-tube design, PVS-3140-MOD delivers depth perception and allows using PVS-3140-MOD to operate various machines, boats etc., in addition to basic ground operations. A dual-tube night vision system has proved to be safer and more effective in low-light conditions compared to a “bi-ocular” system, commonly known as “PVS-7”, which is a “one lens-two eyes” type of NVD.

Technical Data

  • Optical Magnification: 1x
  • Objective Lenses: 27mm
  • Focus Range: 0.25m .. Infinity
  • Field of View: 40º
  • Diopter Adjustment Range: -6 .. +4
  • Interpupillary Adjustment Range: 50mm .. 90mm
  • Built-In IR Illuminator: Yes
  • Momentary IR-On Button: Yes
  • IR-On Indicator: Yes
  • MIL-SPEC Switch: Yes
  • Bright Light Protection: Yes
  • Automatic Light Overload Shut-off System: Yes
  • Low Battery Indicator: Yes
  • Stow Safety Feature: Yes
  • Flip-up-off Feature: Yes
  • Selective Channel Engagement: Yes
  • Any Polarity Battery Insertion: Yes
  • Power Source: 1pc AA or 1pc CR123
  • Battery Life: up to 40 Hours
  • External Power: 4VDC .. 15VDC
  • Operating Temperature: -40C .. +50C
  • Dimensions: 112x105x70mm
  • Weight: 650g
  • Warranty: 7 Years, Limited
  • Export: Available for Export Worldwide
  • Made In Canada, Non-ITAR System
