Protexor PSA EOD Bomb Suit w Cooling System V50 STANAG NIJ 0101.07 - IIIA, III, IV.

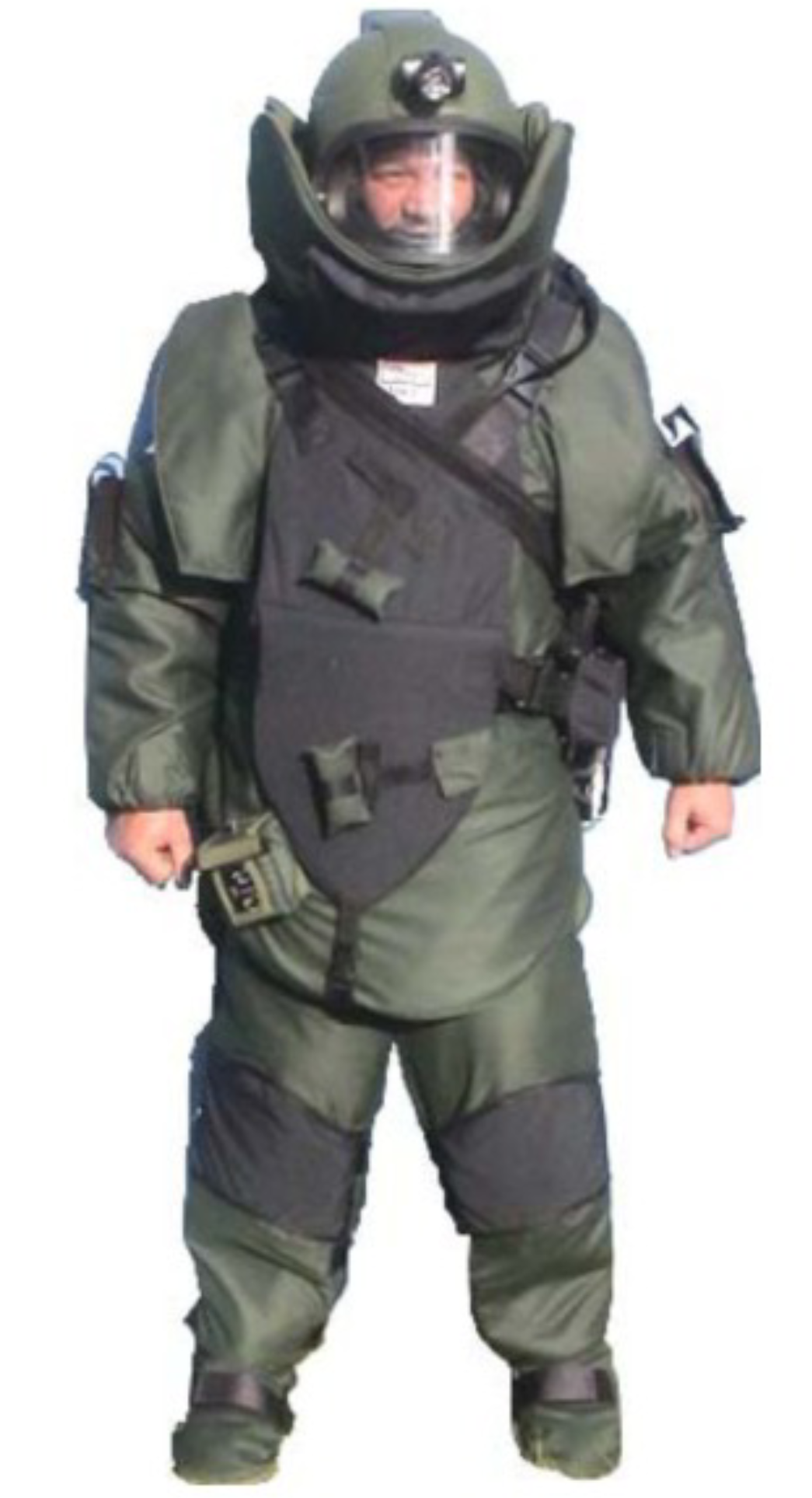

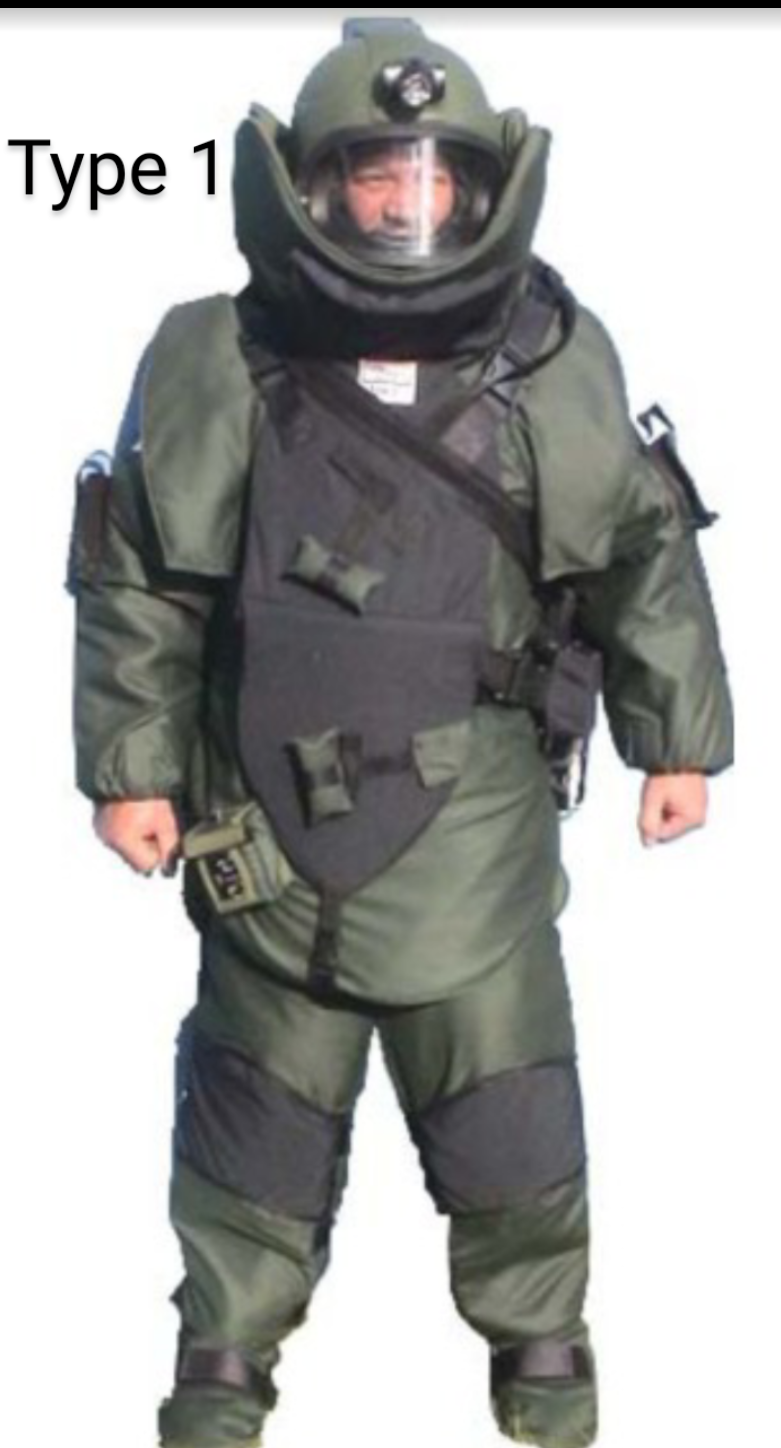

Type 1 (Green ) Model: 2024 PSA – 2024 Edition Standard Model

This type of bomb suit is designed as a special clothing equipment especially for Public
Security, Armed Police departments, for the personnel dressing to remove or dispose of
small explosives. It provides the highest level of protection to the personal currently, whilst it
offers the maximum comfort and flexibility to the operator.

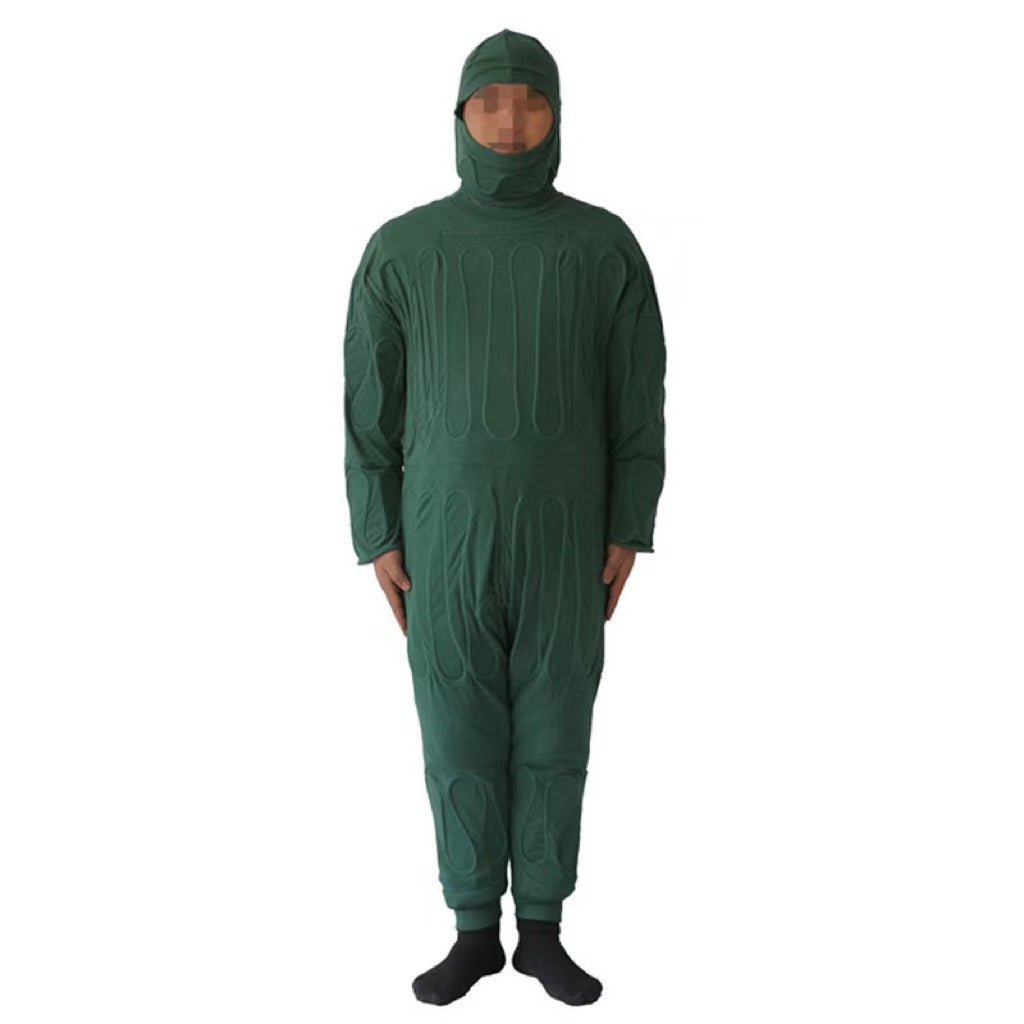

The Cooling suit is used to provide a safe and cool environment for explosive disposal
personnel, so that they can carry out explosive disposal work efficiently and intensively.

Ballistic parameter (V50 testing)

Lead time 4-8 weeks depending on amount of suits.

Bulletproof Mask 744m/s
Bulletproof Helmet 780m/s
The front of smock (Main body of smock) 654m/s
Blast plate +The front of chest, groin ＞2022m/s
Arm (Right Arm, Left Arm) 531m/s
The back of thigh and calf
(Left and Right Thigh, Left and Right Shin) 492m/s
The front of shin (Left and Right Outer) 593m/s

Technical Data of Bomb Suit

Bulletproof Mask
Thickness 22.4mm
Weight 1032g
Material Organic transparent composite
Bulletproof Helmet
Size 361×273×262mm
Protective Area 0.25m2
Weight 4104g
Material Kevlar composites laminated
The front of smock
(Main body of smock)
Size 580×520mm
Weight 1486g
Material 34-layer woven fabric (Aramid fiber)
Blast plate +The front of Throat Plate Dimension 270×160×19.7mm

smock
Throat Plate Weight 1313g
Abdominal Plate Dimension 330×260×19.4mm
Abdominal Plate Weight 2058g
Arm (Right Arm,Left Arm)
Size 500×520mm
Weight 1486g
Material 25-layer woven fabric (Aramid fiber)
The back of thigh and calf
(Left and Right Thigh, Left
and Right Shin)
Size 530×270mm
Weight 529g
Material 21-layer woven fabric (Aramid fibre)
The front of shin (Left and
Right Outer)
Size 460×270mm
Weight 632g
Material 21-layer woven fabric (Aramid fibre)
Bomb Suit Total Weight 32.7kg (without helmet +mask+cooling suit)
Power supply 12V battery
Communication system wired communication system, compatible with most communication
systems.

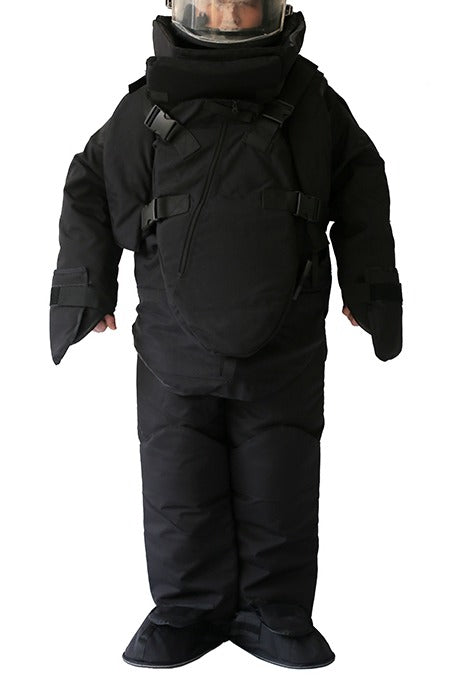

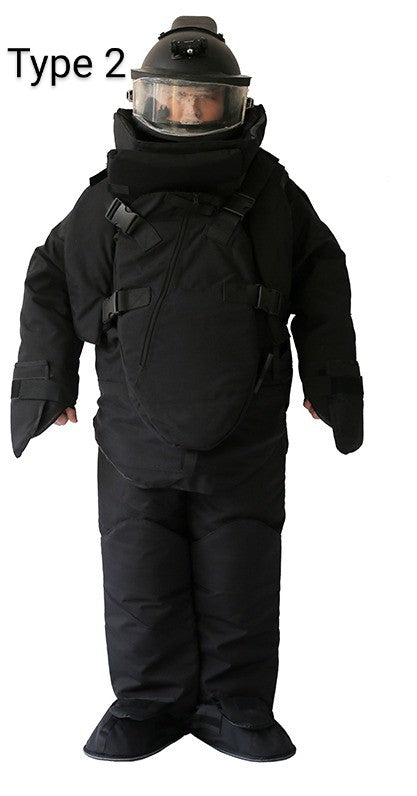

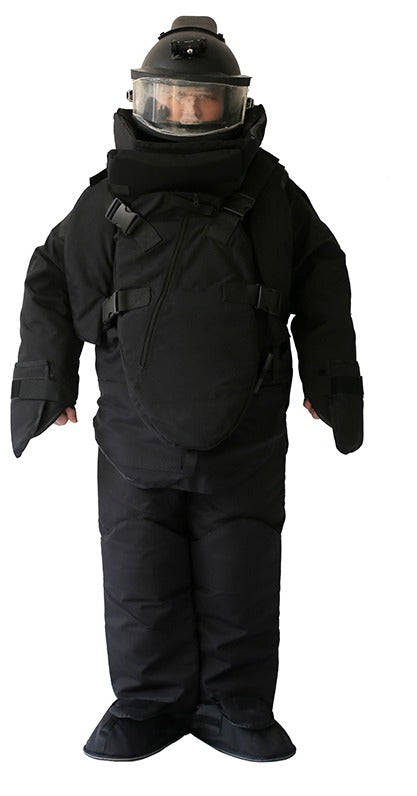

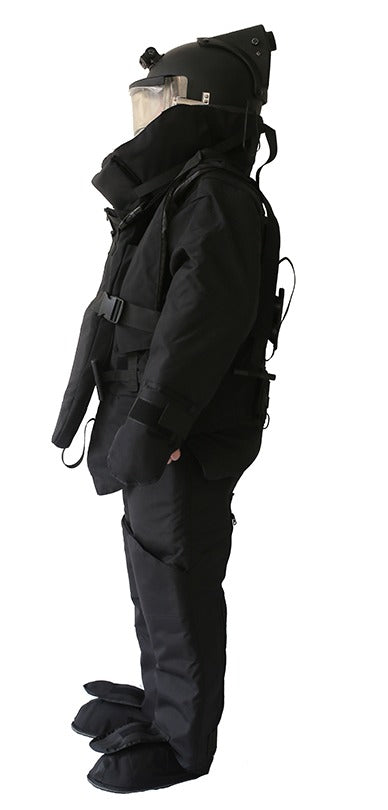

Type 2 ( Black)

we have another style bomb suit as the photos,which is only USD10000 per set.Below are speces.

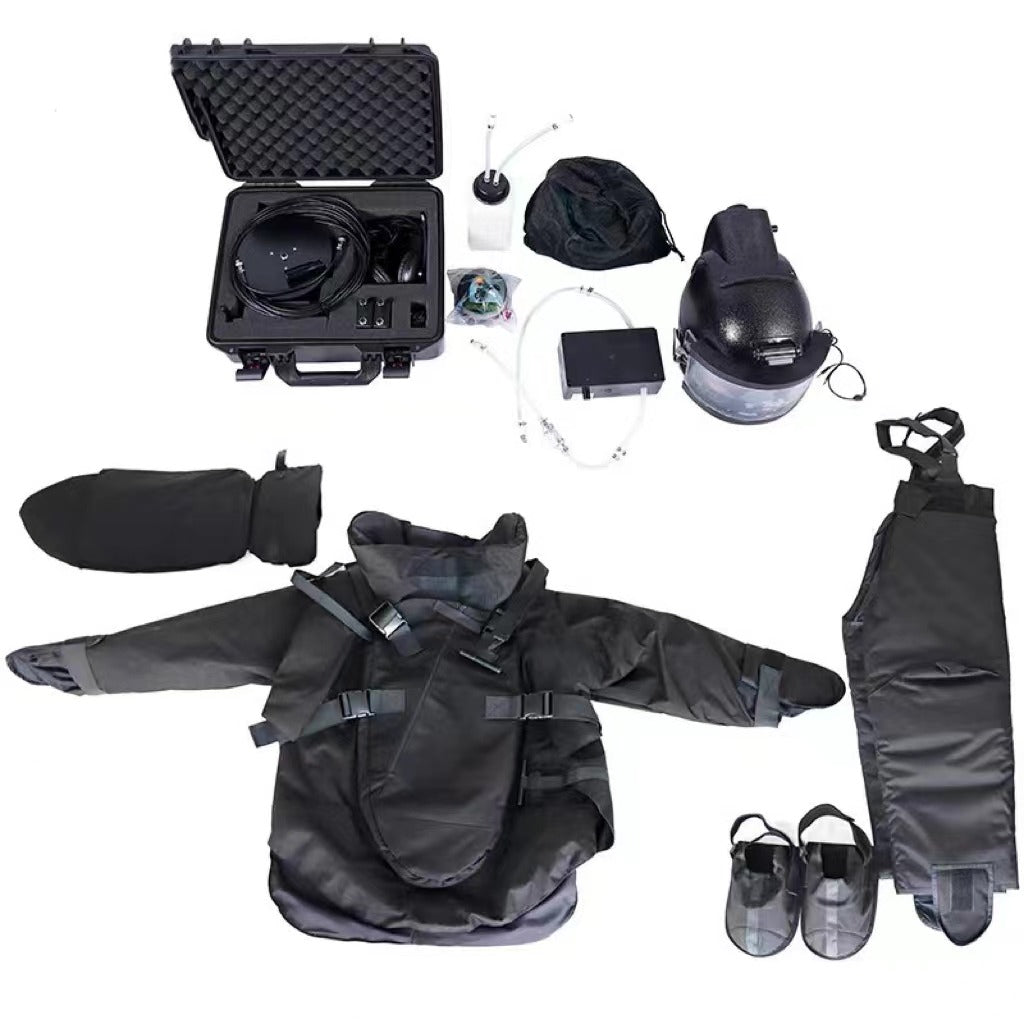

1. Explosive ordnance disposal suit structure:
Composed of a helmet, face mask, chest protector, back protector, arm protector, neck protector, shoulder protector, leg protector, crotch protector, hand and foot protector, with inserts added to chest protector, groin protector, and neck protector; Equipped with water-cooled clothing and communication system.
The explosive suit jacket is made of Nomex fire-resistant and flame-retardant fabric, and the bulletproof layer is made of aramid woven fabric, including 22 layers for neck (back neck), arm, leg (back leg), back, and shoes; 29 layers of crotch protection, neck protection (front collar), shoulder protection, and hand protection; The chest protector has 31 layers; The leg guards (upper and lower legs) have 39 layers.
The plug-in board is composed of 8.0mm multi curved silicon carbide and 10.0mm PEUD cloth.
The helmet consists of a helmet shell and a suspension buffer system. The helmet shell is made of 13.0mm aramid woven fabric.
The face mask is made of 22.0mm bulletproof composite glass material.
2. Weight
Explosive ordnance disposal suit (including chest protection, insert board, back protection, arm protection, neck protection, shoulder protection, leg protection, crotch protection, hand and foot protection): 24.73kg
Helmet and face mask: 5.30kg
Gloves: 0.68kg
Shoes: 1.01kg
3. Helmet size: L：410； B：240； H：255
Mask size: L：345； H：118
Glove size: 200mm * 180mm
Shoe size: 250mm * 180mm
Kettle capacity: 2.0L
4. Flame retardant performance of helmet: continuous combustion time ≤ 4S
Face mask transmittance: 84.6%
5. Maximum V50 value:
The V50 value for the ballistic limit of the 5.1.17 grain fragments is as follows:
Helmet fragmentation ballistic limit V50 value: 739m/s
Mask fragment ballistic limit V50 value: 791m/s
Chest protector (including insert board) ballistic limit V50 value:> 2113m/s
Backguard fragment ballistic limit V50 value: 482m/s
Arm fragmentation ballistic limit V50 value: 516m/s
Maximum ballistic limit V50 value of hind leg fragments: 519m/s
Protective leg fragment ballistic limit V50 value: 610m/s
