DUAL BEAM AIMING LASER & IR LASER/ILLUMINATOR ADVANCED-4

DUAL BEAM AIMING LASER - ADVANCED⁴

^{This product is subject to ITAR controls}

The advanced DBAL-A4 has four functions: visible laser pointer, infrared laser pointer, infrared spot/flood illuminator, and bright white tactical light. High/low modes.

Spot (Narrow Field of View) and Flood (Wide Field of View) Illumination

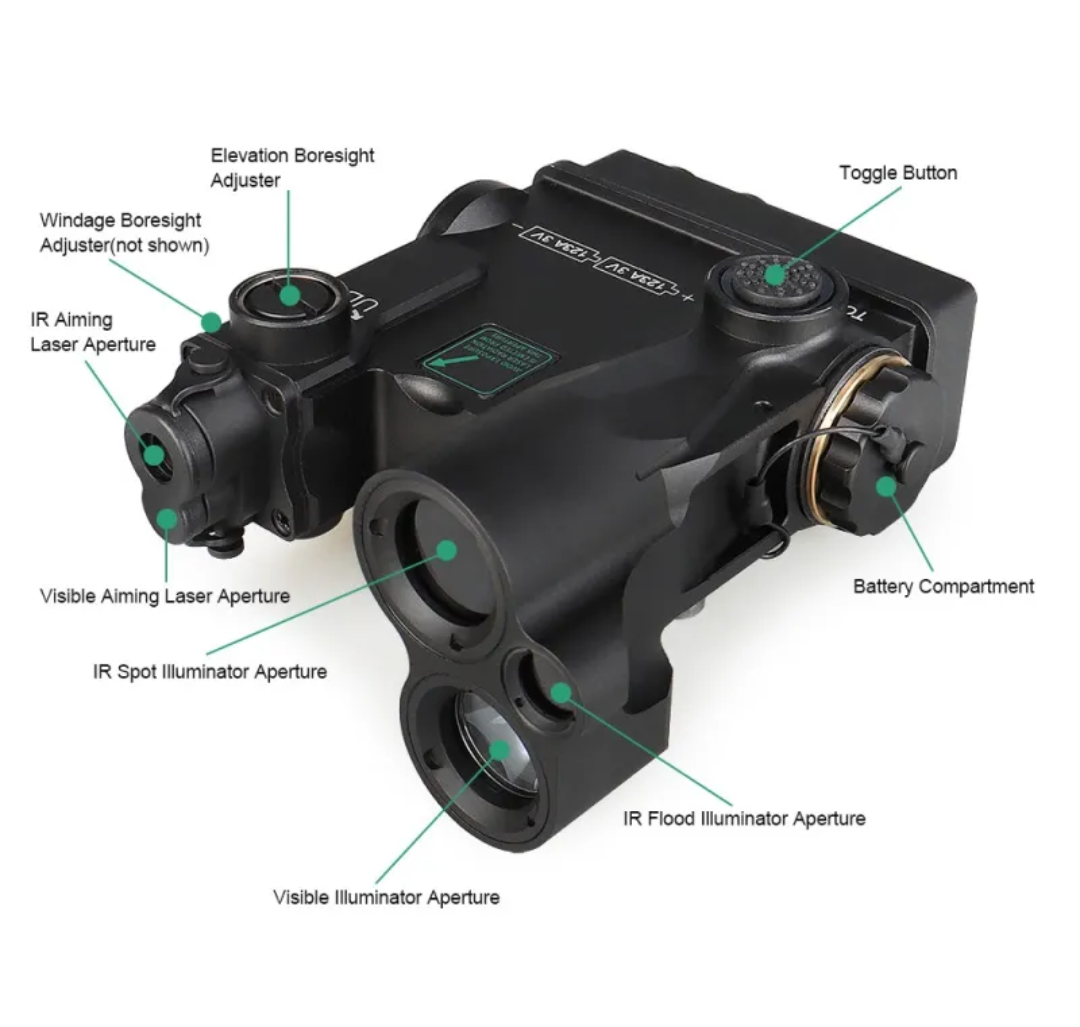

Fully adjustable windage and elevation

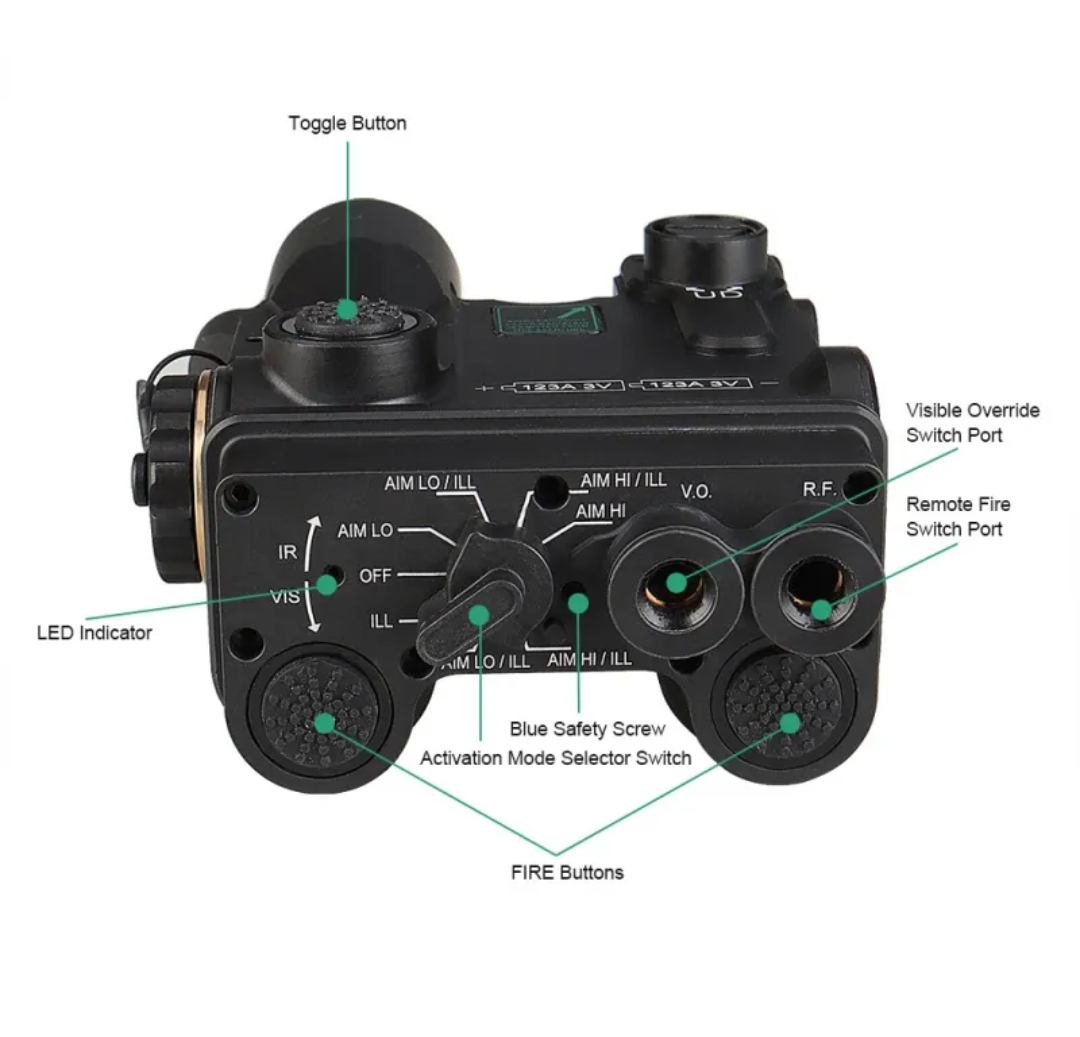

Integrated fire button and remote cable pressure pad switch activation. Tap and release for momentary action; tap twice for 5-minute continuous on

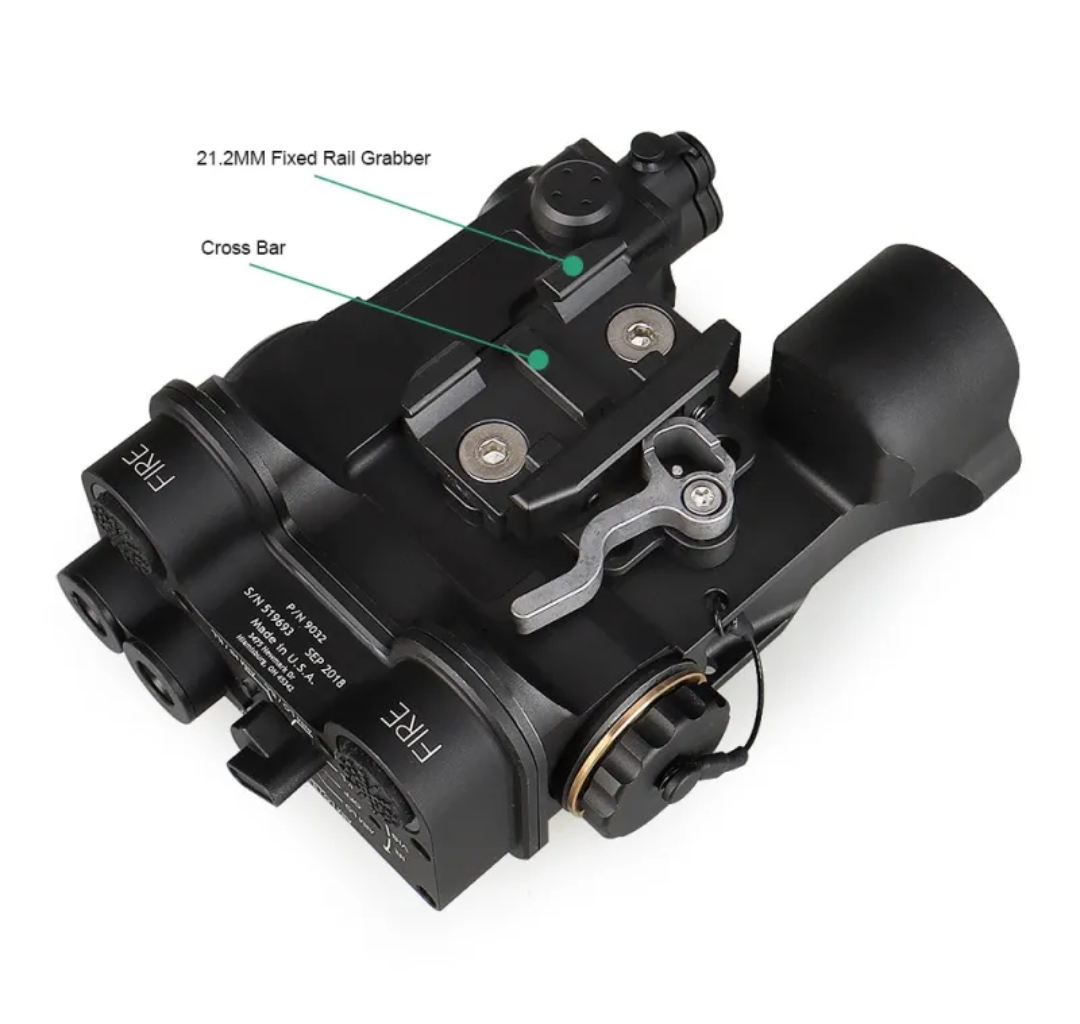

Attaches to any Picatinny rail using secure quick disconnect (QD) mount

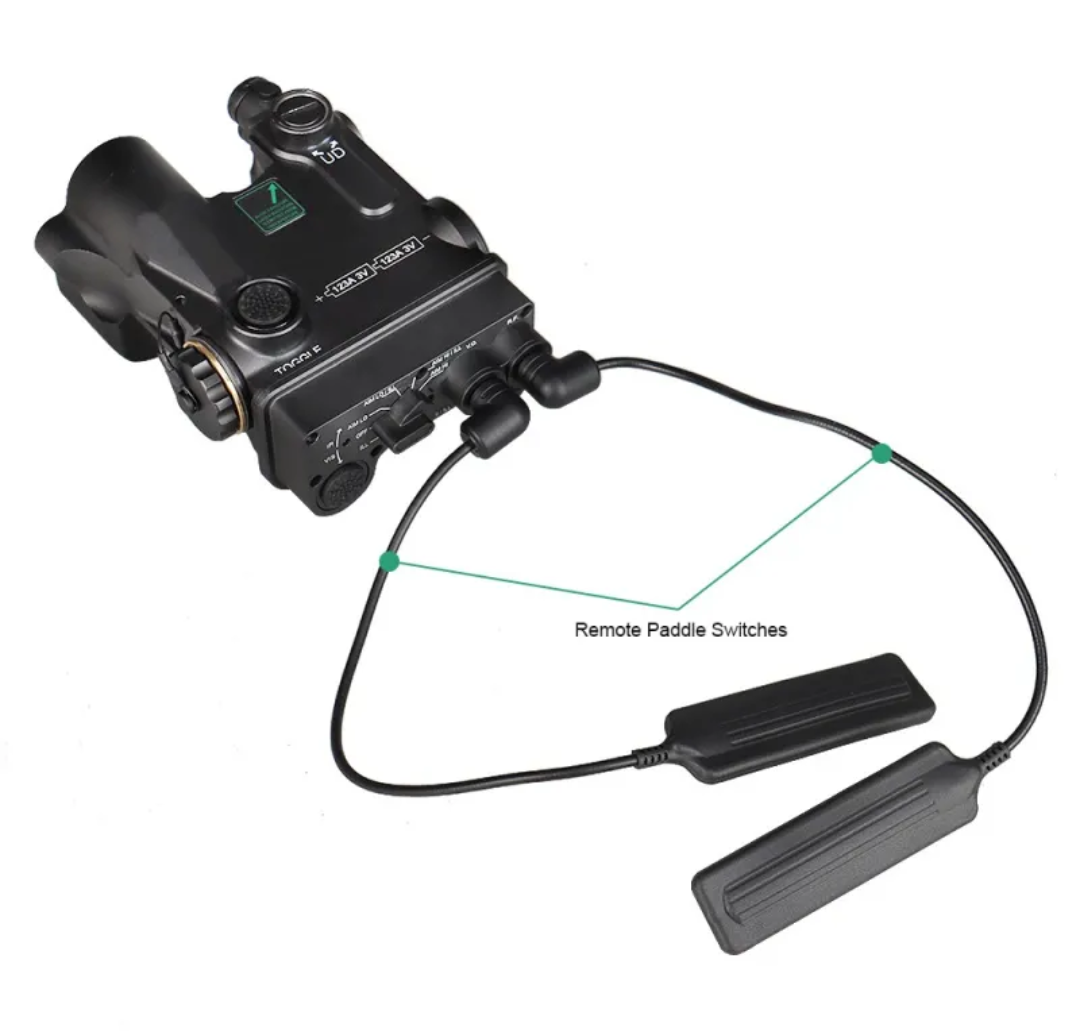

Two remote cable ports at rear of unit for paddle switch activation and visible laser/white light override capabilities

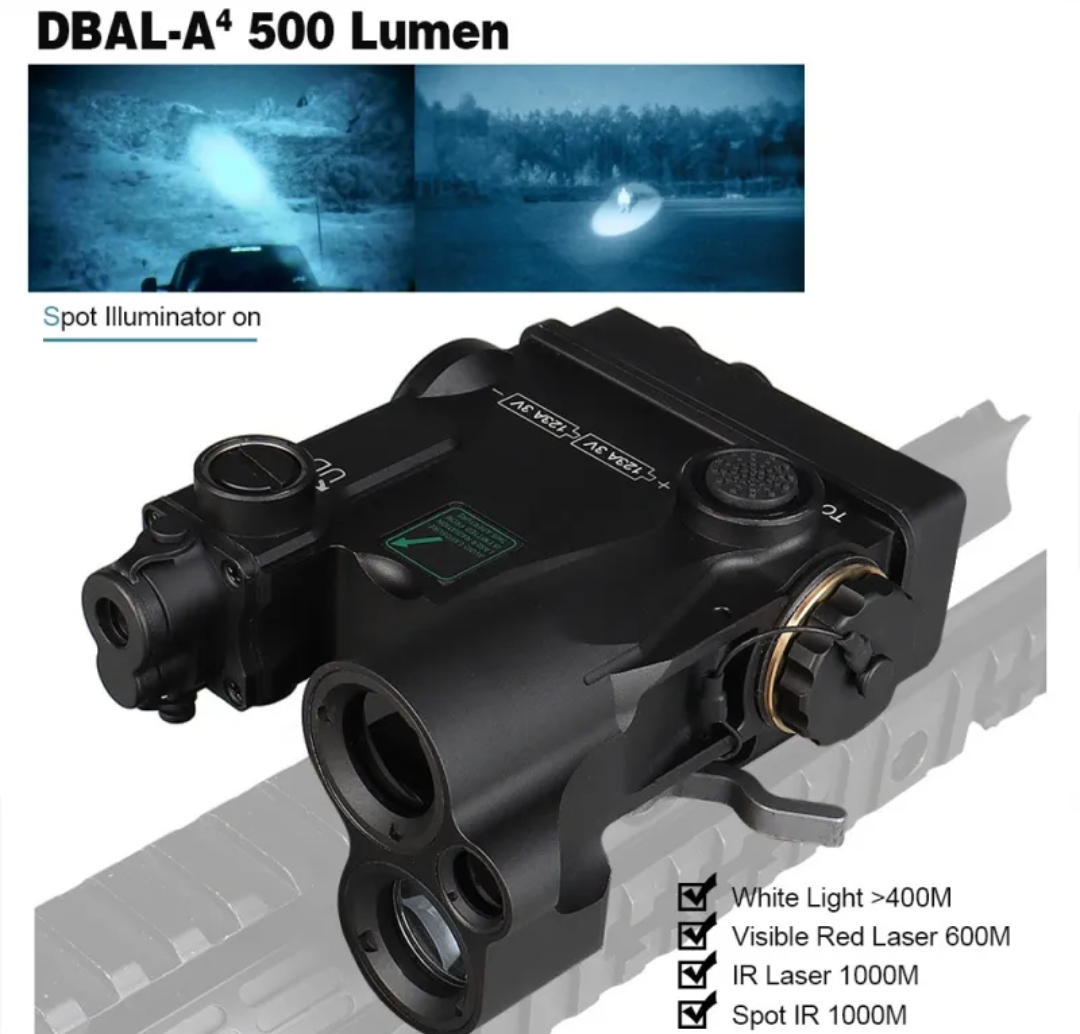

500 lumen tactical white light

IR Illuminator <0.7 mW, Class I

Restricted No

Wavelength - Visible Red Laser 525 nm +/-3%

Wavelength - Visible Green Laser 525 nm +/-3%

Wavelength - IR Laser 850 nm +/-3%

Wavelength - IR Illuminator 850 nm +/-3%

Wavelength - White Light 500 Lumens

Beam Divergence - Visible Red or Green Laser <0.5 mRads

Beam Divergence - IR Laser <0.5 mRads

Beam Divergence - IR Illuminator 4° / 90°

Range/Visibility (Night/Day)* - Visible Green Laser >2000 m / >50 m

Range/Visibility (Night/Day)* - Visible Red Laser >2000 m / >50 m

Range/Visibility (Night/Day)* - IR Laser 1400 m

Range/Visibility (Night/Day)* - IR Illuminator 1400 m

Temperature -20° C - +65° C

Battery CR123A (2)

Battery Life (mode dependent) > 3 hours

Material Aircraft Aluminum

Color Desert Sand

Weight (with battery) 12 oz

Dimensions 4.5(L) x 3.4(W) x 2.1(H) in.

Waterproof Submersion to 20 m

Mount QD HT Mount

Windage and Elevation Adjustment Yes

Activation Switch Integrated Push Button

Remote Cable Pressure Pad Yes

Warranty 2-Year

Special Features Dual Remote Cable Ports
