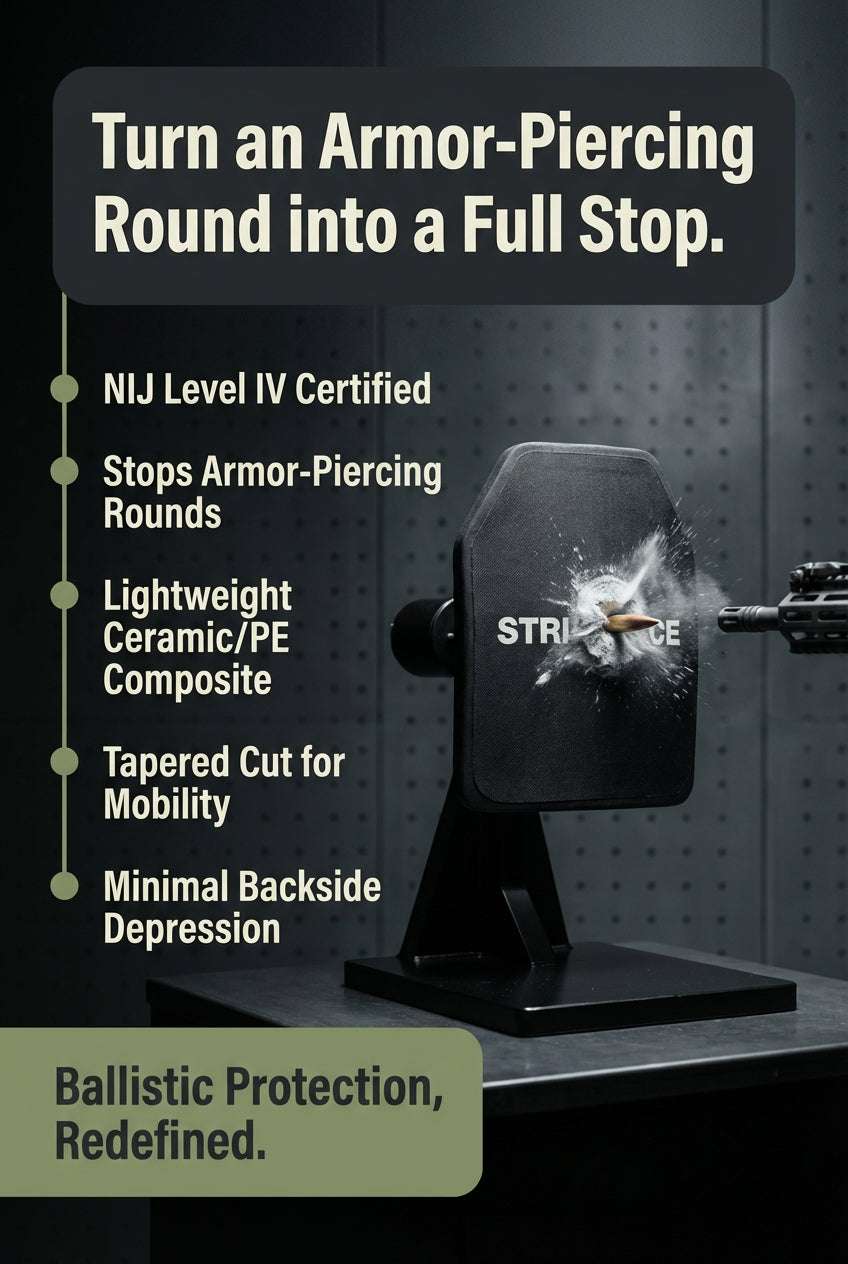

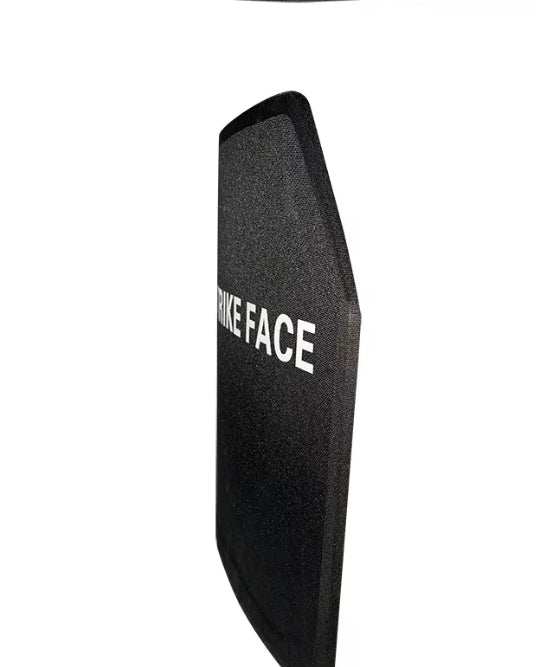

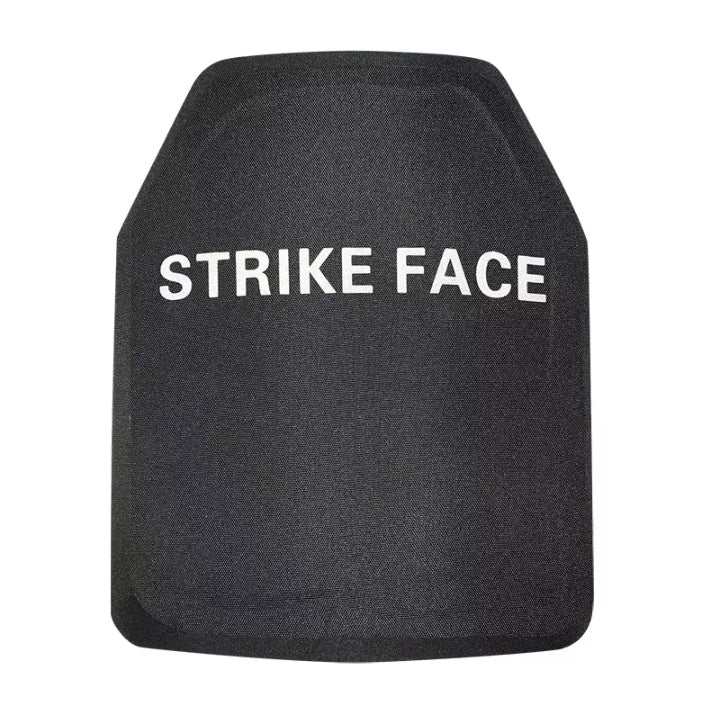

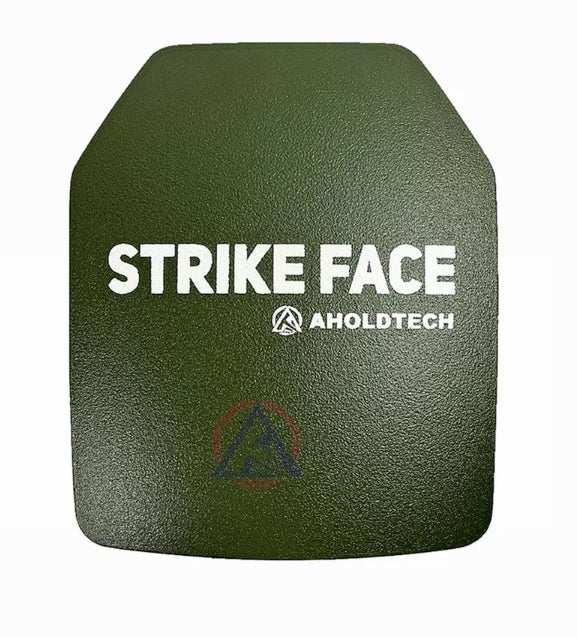

Composite Armour strike plates Ballistic Protection NIJ IV & III

Made with a Ceramic & pure PE compisite providing a Stable and excellent performance Light weight and small depression
Widely used in bulletproof cars, armoured vehicles and body armour single curved moulding, two upper corners tapered can maximize mobility during dynamic tactical operation(Other templates also are available, customized)
Bulletproof material : Ceramic +UHMW-PE Fabric material : water-proof polyester fabric (customized)Bulletproof card specifications for: 25cm * 30cm=11.8''*9.8''

Vest is not included these are strike plates only to insert into vest carrier harness.

Chest card can be placed in the front and rear plates bulletproof vest pocket

According to the US standards correspondence:

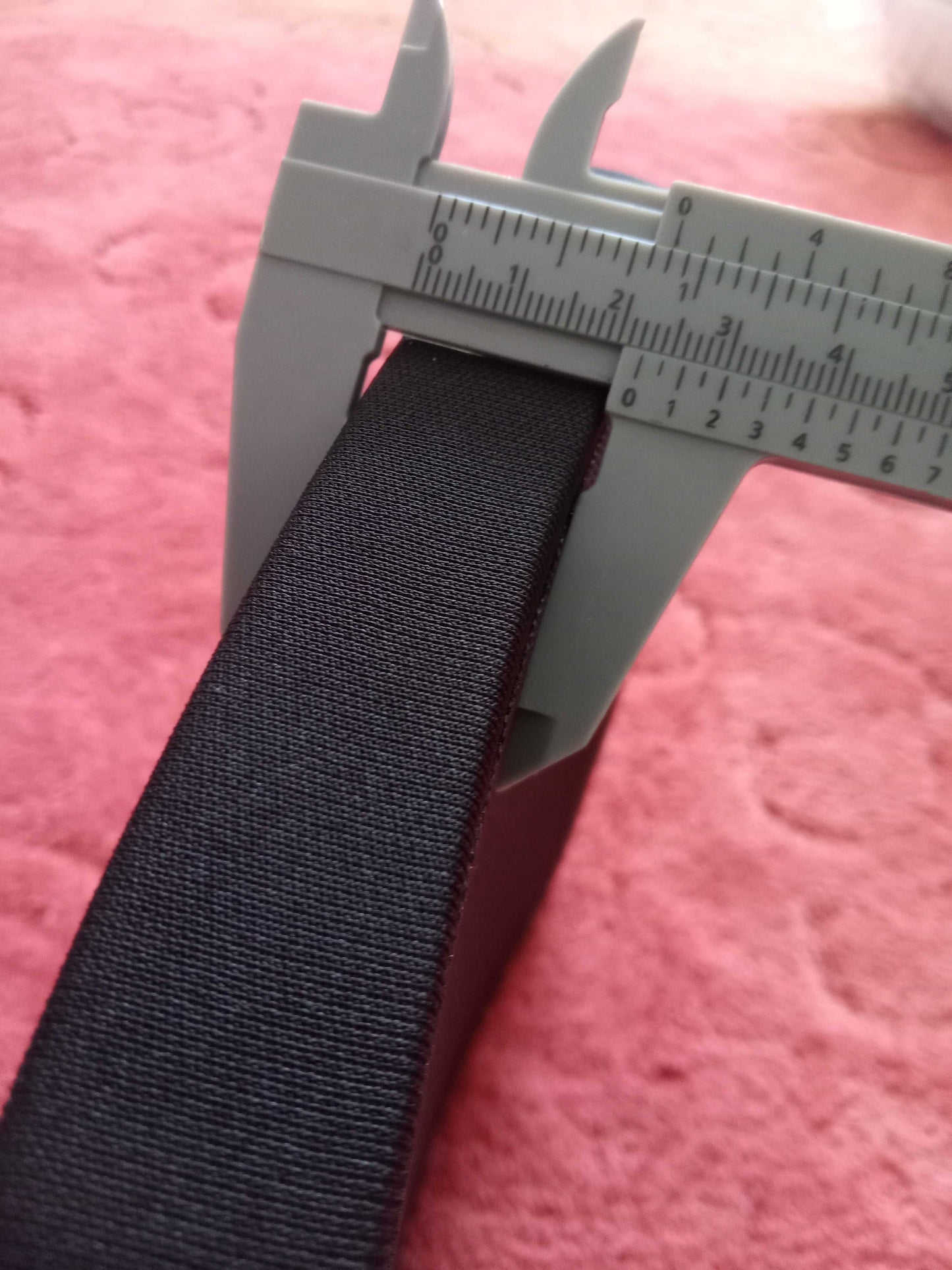

14mm =    IIIA level   - 0.650kg HARD ARMOUR

1.Made of UHMW-PE super light weight

2.High Performance - Multi-Hit capability (6 Shots)

3.Capable of stopping .45 ACP / 9mm FMJ / .357 Mag .44 Mag, Comfort-Multi Curve

_____________________________________________________

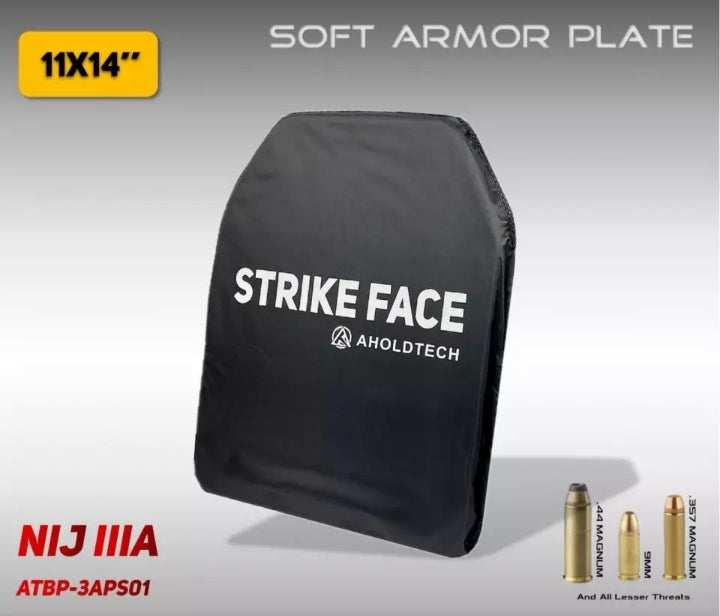

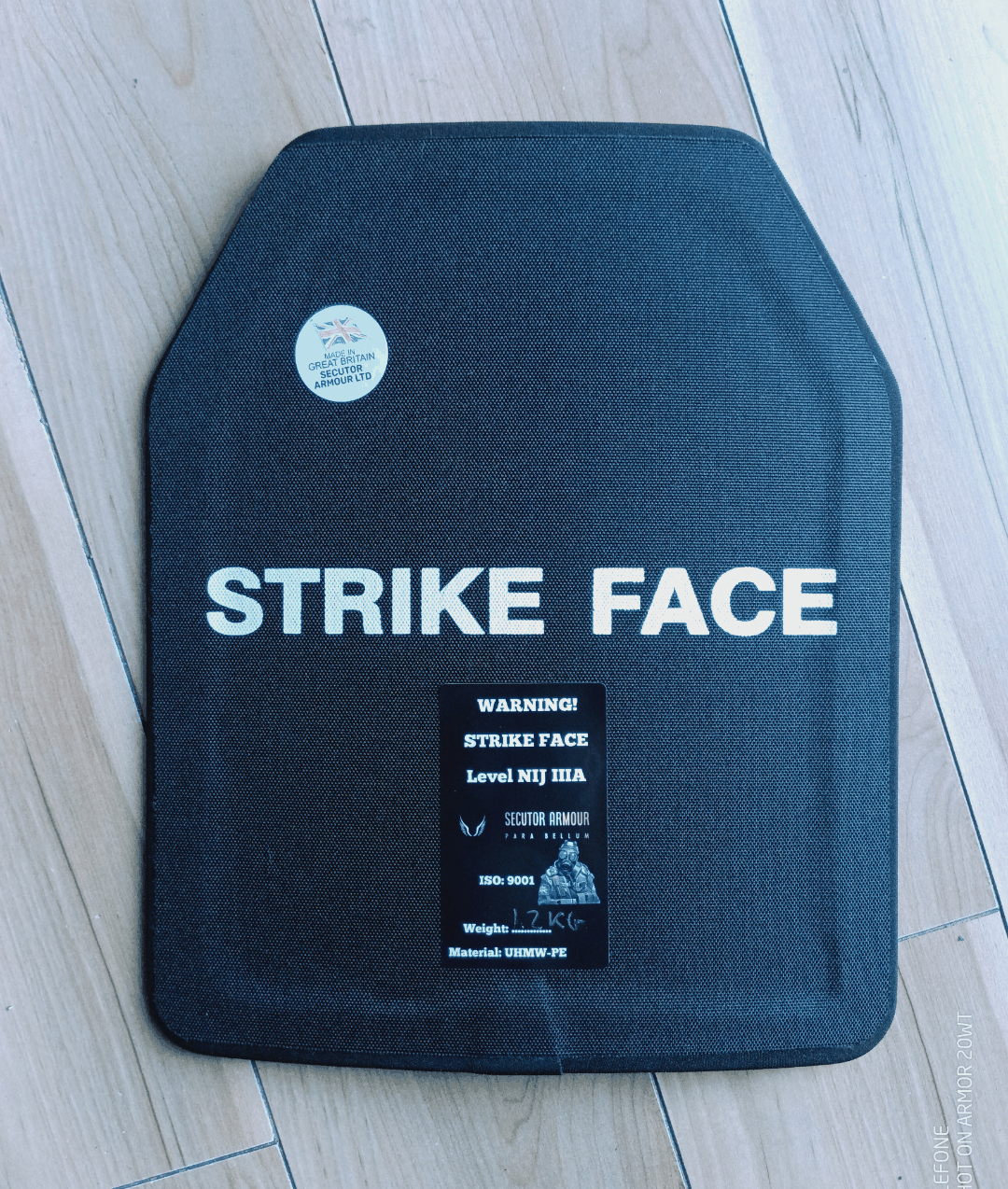

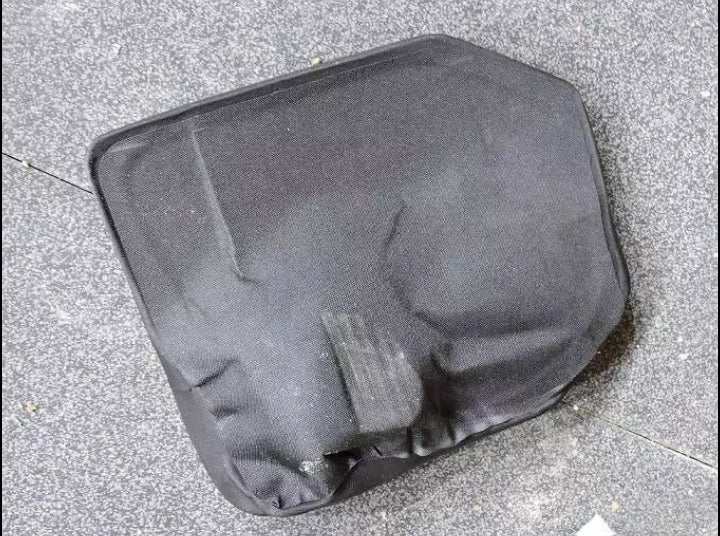

15mm =     IIIA level  - 0.50kg Soft Armour

1.Made of UHMW-PE: Flexible and Soft

2.High Performance - Multi-Hit capability

3.Capable of stopping .44 Mag & 9mm FMJ & .357 SIG

_____________________________________________________

6mm   =    III Level     - 2.5kg UHT STEEL
Drop resistant, non fragile
Multi-strike capability
Anti Spall Coated
No trauma (can be used as a stab-resistand, or anti trauma plate)
Specifications:

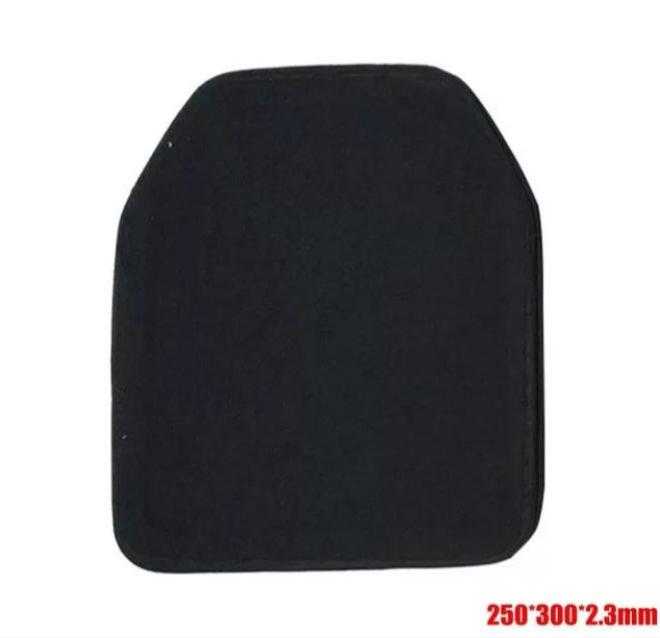

Plate sizes: 10" X 12" (250 X 300 X 6mm),
Weight: 2.5kg
Color: Black
Ballistic materials: steel
Stand-Alone and Multi-Hit capable                 NIJ0101.06 Bulletproof Grade

Test Bullets Level Wepons AK47 M14 7.62mm NATO FMJ AUG5.56 5.56mm*45 NATO SS109 Velocity(m/s) 7.62mm*39MSC 847±10m/s 1000±10m/s Shots 6 730±10m/s Distance 15m

_____________________________________________________

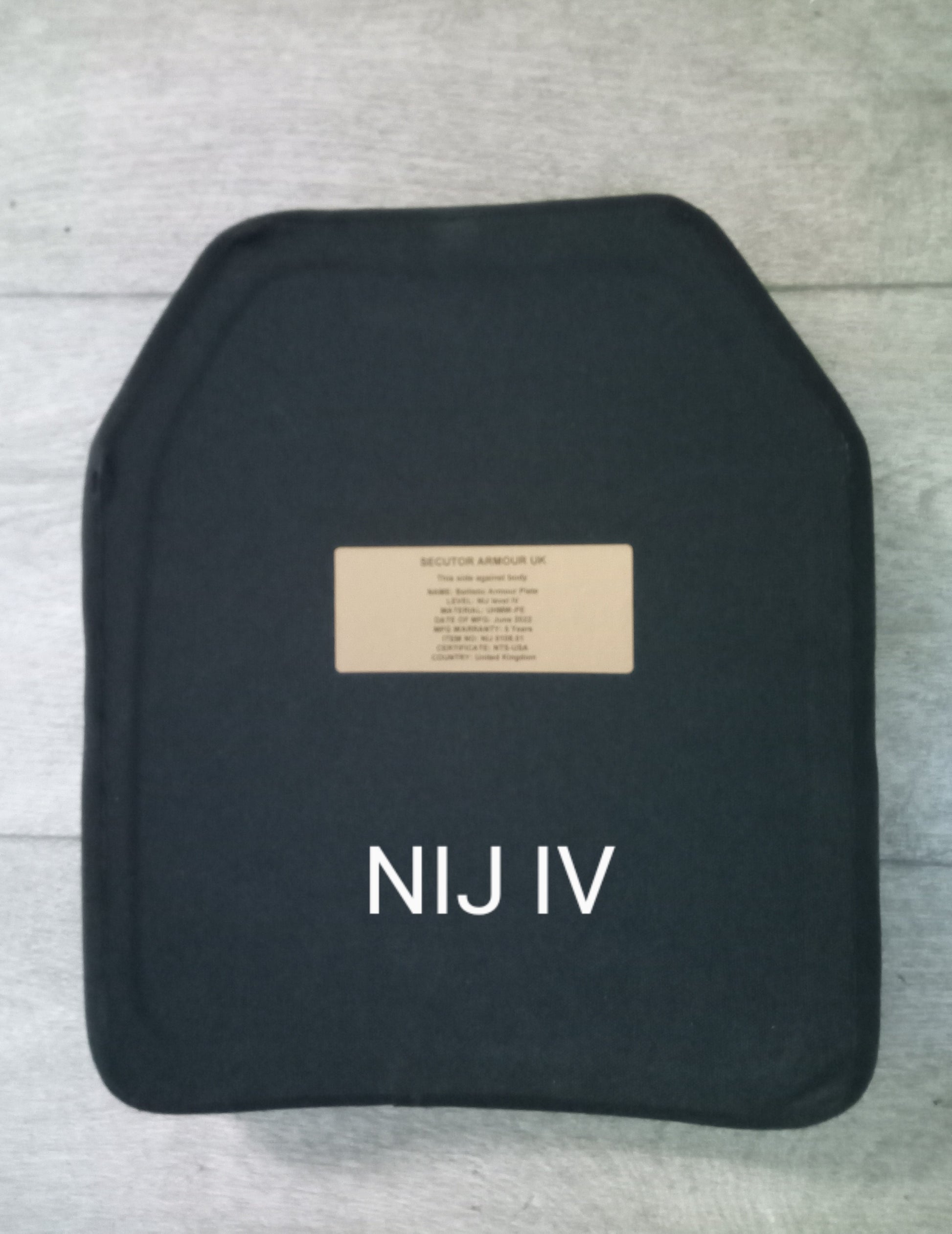

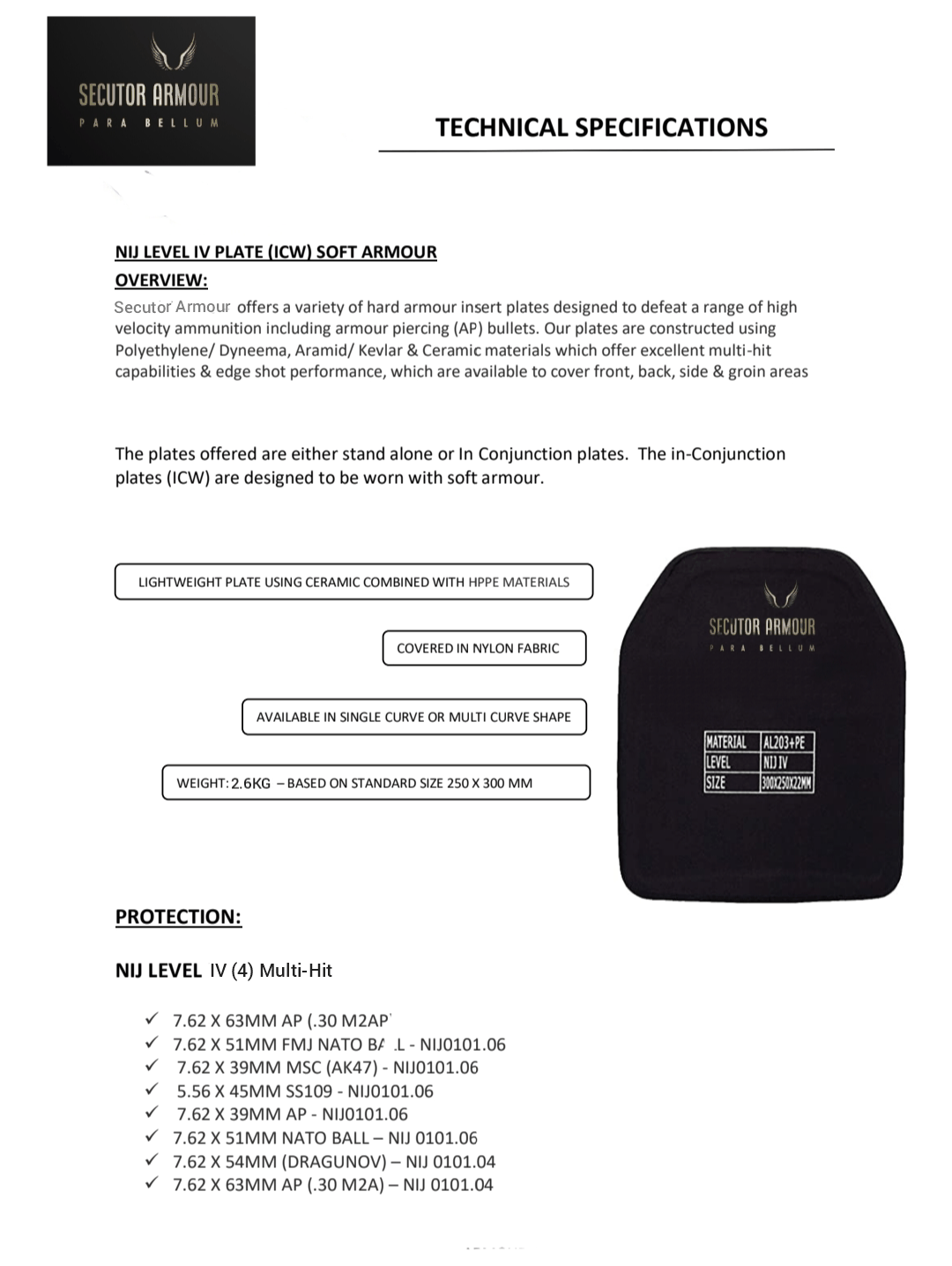

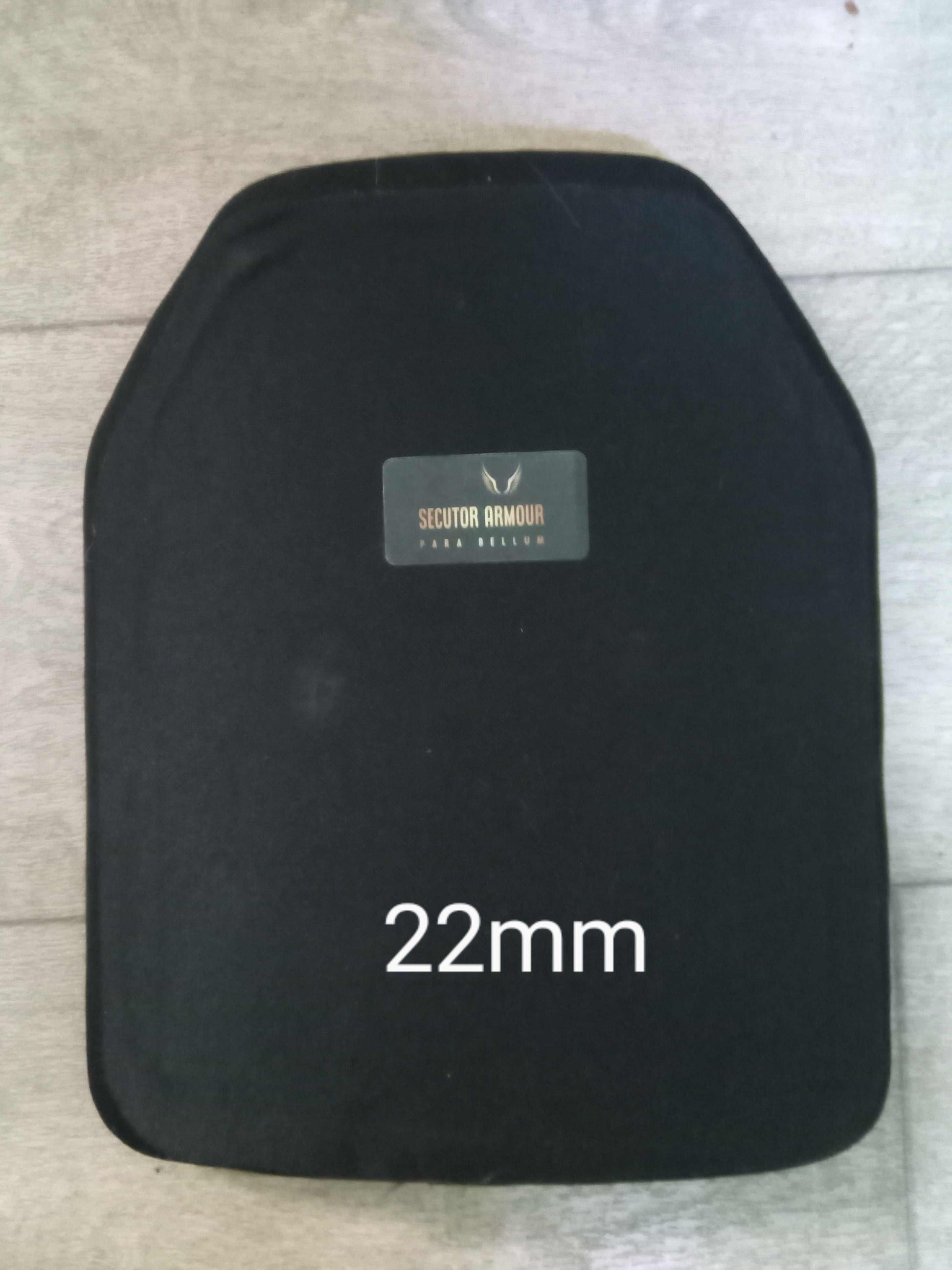

22mm =     IV Level    - 2.4kg

Model: CA-ALU-IV Style: SAPICut, E Shape Level: NIJ 0106.01 IV SA&ICW(Accoring to NIJ 0106.01&NIJ 0108.01) Material: UHWMPE+ALU                             Size: 300x250mm(12x10’’)                                                  Ballistic Protection: NIJ IV                               7.62x51mm M80 Nato 7.62x39mm AK47 MSC&AP 5.56x54mm M2 AP , 5.56x45mm M193 SS109  (Incluce IIIA 9mm, .357 SIG, .44 Magnum)

_____________________________________________________

26mm =     IV+ level multi strike. 2.9kg

Multi hit capability against AP M2 & M80

Buoyant neutral (floats in water)can be used into floating jacket

Polyure painting or fabric cover.(Water, oil and vibration resistant.Temperature, altitude and pressure stable)

Protection

Ballistic Protection: NIJlevel III

7.62x51mm M80 Nato

7.62x39mm AK47 MSC&AP

5.56x54mm M2 AP

5.56x45mm M193 SS109

(Incluce IIIA 9mm, .357 SIG, .44 Magnum)
